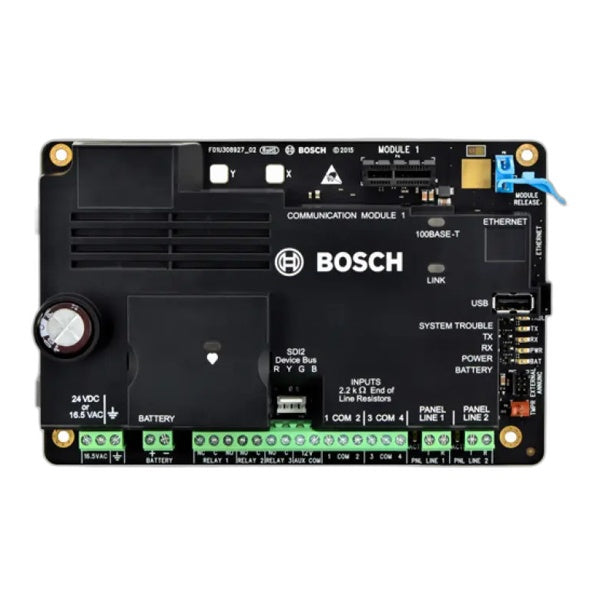

Bosch B465-MR-120WI

The Bosch B465-MR-120WI is a universal dual-path communicator kit that upgrades legacy PSTN digital dialers to modern IP-based central station reporting, supporting seamless transmission over Ethernet with optional cellular backup through Conettix plug-in modules. This communicator automatically detects and converts Contact ID, SIA, Pulse 3/1, and Pulse 4/2 signals without requiring control panel reprogramming, making it compatible with virtually any fire alarm control panel in service. The integrated 16.5 VAC 40 VA transformer provides stable power for system components, while support for either 7 Ah or 18 Ah backup batteries ensures continuous operation during power loss—critical for maintaining central station communication during emergencies.

Key Features

• Universal dual-path communicator compatible with Contact ID, SIA, and Pulse formats without panel reprogramming
• IP-to-central-station transmission via built-in Ethernet connection
• Optional cellular backup through Conettix cellular module for redundant communication path
• Integrated 16.5 VAC 40 VA transformer for regulated power delivery
• Four configurable inputs and three outputs for flexible alarm management integration
• LED and sounder status monitoring for visual feedback on system status
• Red matte finish compatible with commercial fire application standards

Technical Specifications

• Power Supply: 16.5 VAC 40 VA transformer with backup battery support (7 Ah or 18 Ah)
• Communication Protocols: Contact ID, SIA, Pulse 3/1, Pulse 4/2 (auto-detecting)
• Network Interface: Built-in Ethernet for IP transmission to central station
• Inputs: 4 configurable inputs for alarm reporting signals
• Outputs: 3 programmable outputs for auxiliary system control
• Module Compatibility: Conettix plug-in cellular modules for backup cellular connectivity

Certifications

• UL 864 10th Edition approved for commercial fire/burglary applications
• NFPA 72 version 2013 compliant central station communication
