Bosch B600
Bosch B600
Out of stock; call for lead time

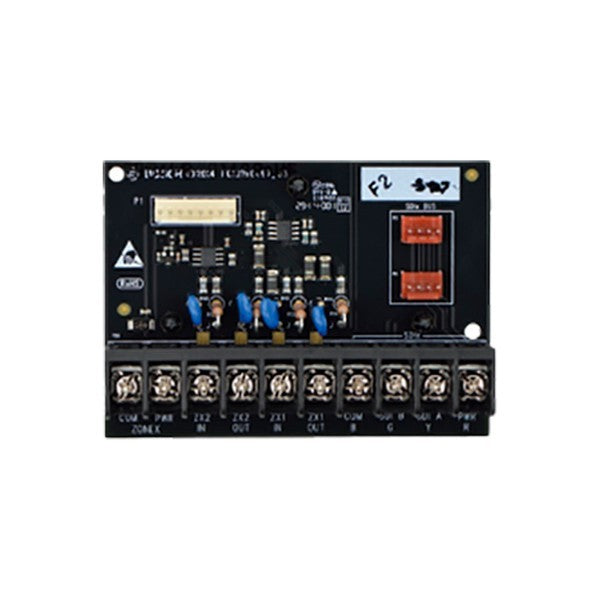

The Bosch B600 is a ZONEX retrofit module that extends multiplex fire alarm systems with support for two separate ZONEX communication buses, enabling integration of legacy ZONEX-compatible modules into modern Bosch control panel architectures. This retrofit interface connects directly to the control panel through a proprietary connection and can manage up to 15 ZONEX modules per bus, including combinations of D8128D input/output modules and D8129 octo-relay modules. The compact 3-hole mounting footprint facilitates integration into existing enclosures and control panel installations, while the 12 VDC nominal power supply with minimal 12 mA current draw ensures compatibility with standard Bosch power systems.
Key Features
- Dual ZONEX bus support for extended ZONEX module capacity
- Compatible with D8128D input/output modules and D8129 octo-relay modules
- Supports up to 15 modules per ZONEX bus (combined modules)
- Compact 3-hole mounting footprint for easy installation and panel integration
- Low current draw (12 mA) for efficient power management
- Direct proprietary connection to Bosch control panels
Technical Specifications
- Module Type: ZONEX Retrofit Interface
- Power Supply: 12 VDC nominal
- Current Draw: 12 mA nominal
- Wiring: 12-24 AWG support
- Mounting: 3-hole mounting footprint
- ZONEX Bus Capacity: Up to 15 modules per bus (two buses total)
- Module Support: D8128D and D8129 ZONEX compatible devices
- Connection: Proprietary control panel interface
Certifications
- UL 864 Listed for fire alarm system applications
- Compatible with UL-listed Bosch fire alarm control panels
