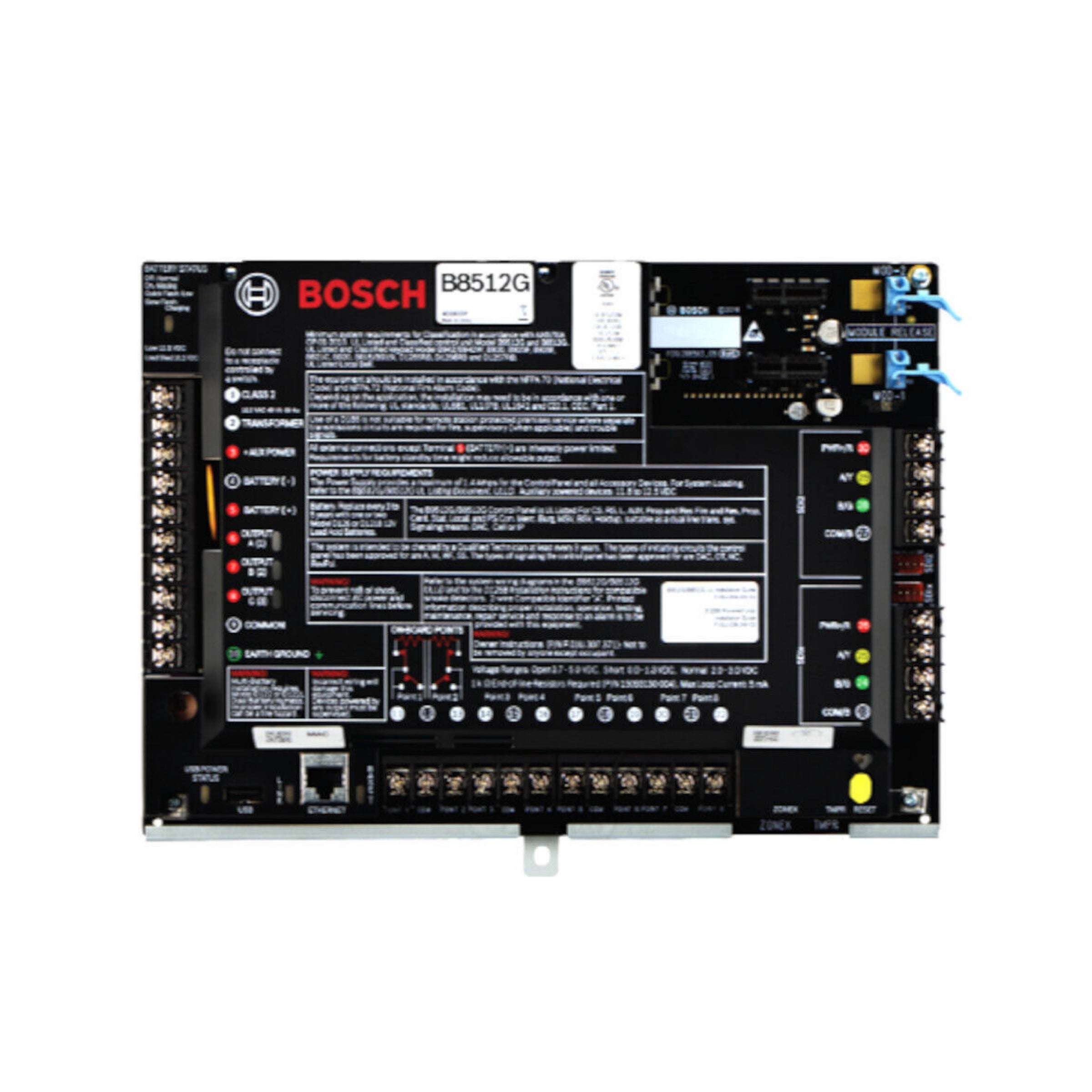

Bosch B8512G

The Bosch B8512G is a fully integrated, modern IP-enabled control panel combining fire alarm, intrusion detection, and access control capabilities in a single system to serve multi-area commercial and institutional facilities. Supporting up to 99 monitoring points across 8 configurable areas, 8 door access zones, and 500 user profiles, this panel accommodates hardwired or wireless device integration while maintaining full fire alarm compliance. The integrated Ethernet port enables IP-based alarm transmission via Conettix communicators, remote system programming, and future-ready IPv4/IPv6 network compatibility, all powered by a 16.5 VAC 40 VA transformer with selectable backup battery options (7, 18, or 38 Ah).

Key Features

• Integrated fire/intrusion/access control in single panel
• 99 monitoring points across 8 addressable areas
• 8-door access control with support for 500 user profiles
• On-board Ethernet port for IP alarm transmission and remote programming
• IPv4/IPv6 network compatibility for modern infrastructure
• Hardwired and wireless device support for flexible topology
• Multiple backup battery options (7, 18, or 38 Ah)
• Conettix IP communicator ready for central station reporting

Technical Specifications

• Monitoring Points: 99 maximum
• Areas: 8 configurable areas
• Doors: 8 access control zones
• Users: 500 maximum profiles
• Power Supply: 16.5 VAC 40 VA transformer (D1640)
• Backup Battery: 12 VDC sealed lead-acid (7, 18, or 38 Ah options)
• Idle Current: 190 mA
• Alarm Current: 265 mA
• Maximum Accessory Power: 1.4 amperes (panel and all devices)
• Communication: Ethernet port for IP/Conettix
• Network: IPv4/IPv6 compatible

Certifications

• UL Listed fire alarm control panel
• Integrated intrusion and access control certification
• IP-based alarm transmission ready
