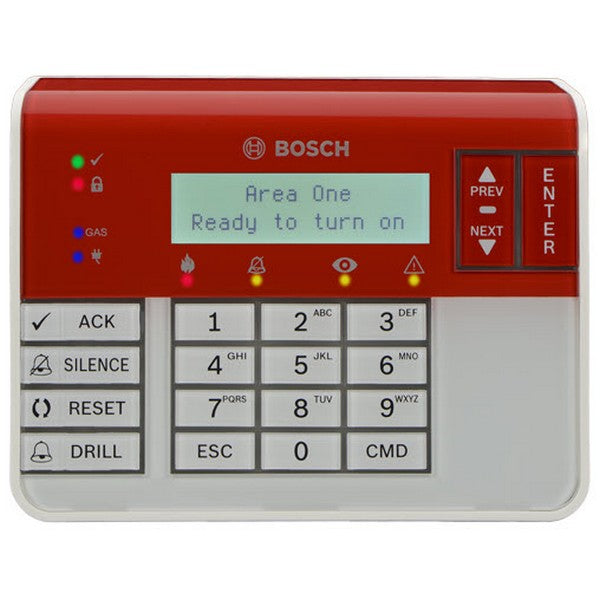

Bosch B926F

The Bosch B926F is a fully supervised fire annunciator keypad with a two-line LCD display for fire alarm system status monitoring and control in commercial and institutional facilities. Designed for integration with Bosch BG Series control panels via SDI2 network interface, this fire keypad provides dedicated function keys for critical operations—ACK (acknowledge), SILENCE, RESET, and DRILL—while displaying up to 32-character point, user, and area names. The intuitive menu-driven interface allows authorized personnel to efficiently manage fire alarm events and system status without requiring extensive training, making it ideal for large facilities where distributed monitoring stations need coordinated access to system information.

Key Features

• Two-line LCD display (32 character capacity) for point, user, and area name display
• Dedicated fire function keys: ACK, SILENCE, RESET, DRILL
• Fully supervised SDI2 device with integrated signal redundancy
• Menu-driven user interface for intuitive operation
• ABS construction with PMMA display window for durability and visibility
• Compatible with Bosch B9512G, B9512G-E, B8512G, and B8512G-E control panels

Technical Specifications

• Dimensions: 158 mm (6.2 in) height x 120 mm (4.7 in) width x 26 mm (1.0 in) depth
• Weight: 11.3 oz (0.32 kg)
• Power Supply: 12 VDC nominal
• Current Draw: 35 mA standby, 70 mA alarm
• Communication: SDI2 bus interface (260 m with 22 AWG wire, 305 m with 18 AWG wire)
• Operating Temperature: 0°C to +49°C (32°F to 120°F) at 5-93% relative humidity
• Construction: ABS housing with PMMA display window

Certifications

• UL Listed fire keypad for Bosch control panel systems
• Fully supervised SDI2 device meeting fire alarm standards
