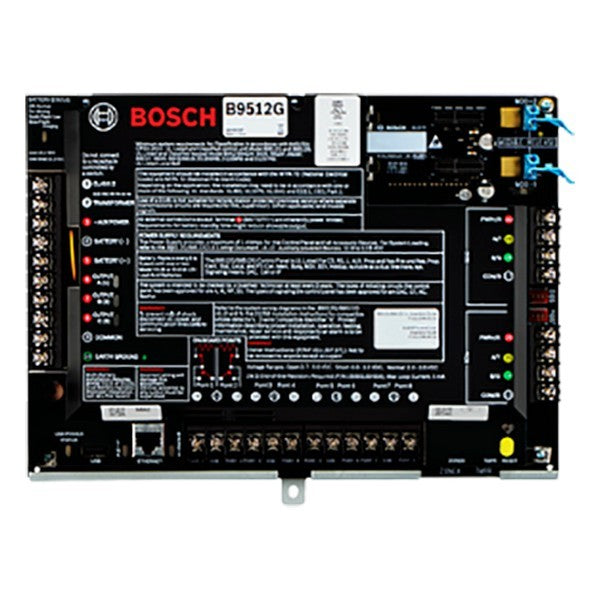

Bosch B9512G

Key Features

• Fully integrated fire, intrusion, and access control in one unified system
• Supports up to 599 points with combination of hardwired and wireless devices
• 32-area zoning with access control for up to 2,000 users and 32 doors
• Built-in Ethernet port for IP alarm communication and remote programming via Conettix
• 12 VDC sealed lead-acid rechargeable battery backup with multiple capacity options

Technical Specifications

• Type: Multi-function fire/intrusion/access control panel
• Point Capacity: 599 total addressable points
• Area Zones: 32 areas with full control programming
• Access Control: 2,000 user capacity with 32 door control
• Power Input: 16.5 VAC, 40 VA class 2 plug-in transformer (D1640)
• Backup Battery: 12 VDC sealed lead-acid (7 Ah, 18 Ah, or 38 Ah options)
• Panel Current: Idle 190 mA; Alarm 265 mA
• Accessory Power: Maximum 1.4 Amps available for panel and devices
• Communication: Built-in Ethernet port for IP connectivity

Certifications

• UL 864 Listed (fire alarm control unit)
• NFPA 72 Compliant (National Fire Alarm Code)
• Listed for Fire (CS, RS, L, AUX, Prop, Res categories)
