Bosch D130
Bosch D130
Out of stock; call for lead time

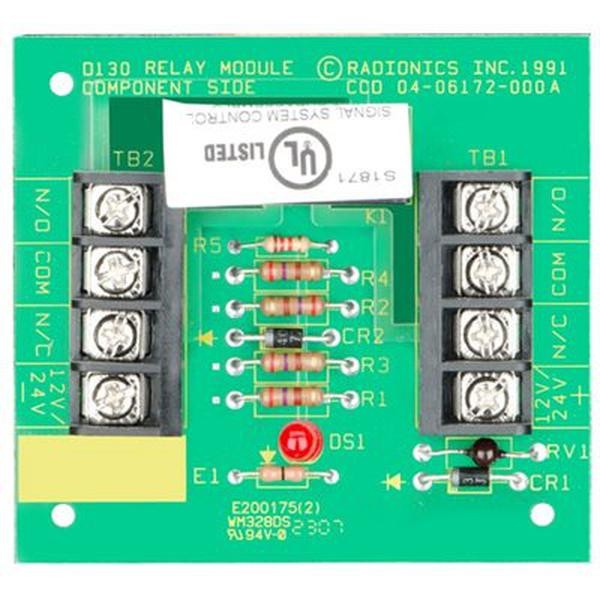

The Bosch D130 is an auxiliary relay module for Bosch fire alarm control panels, extending system capabilities by switching larger currents or different voltages beyond the panel's native power ratings. Featuring dual Form C relay contacts rated at 5 Amps with 12/24VDC coil activation, this module supports critical functions including detector circuit isolation, device switching, and emergency notification control.
Key Features
- Auxiliary relay module for Bosch control panels
- Expands switching capacity beyond panel auxiliary outputs
- 5 Amp rated relay contacts for high-current applications
- Dual Form C relay contacts (normally open and normally closed)
- 12/24VDC coil activation with polarity-switching control
- Red LED indication for coil energization status
- Non-latching relay operation for automatic reset
- Compatible with D125B Dual Class B modules
Technical Specifications
- Product Type: Auxiliary relay module
- Relay Type: Form C (DPDT) dual-throw switching
- Contact Rating: 5 Amps maximum
- Coil Voltage: 12 or 24 VDC
- Coil Activation: Polarity-switched control
- Contact State: Normally closed (inactive) to normally open (active)
- Indication: Red LED for coil energization
- Operating Function: Non-latching with automatic reset
- Common Application: Smoke detector circuit isolation, device switching, emergency functions
Certifications
- Bosch Security Systems compatible module
- FPA-series control panel certified accessory
