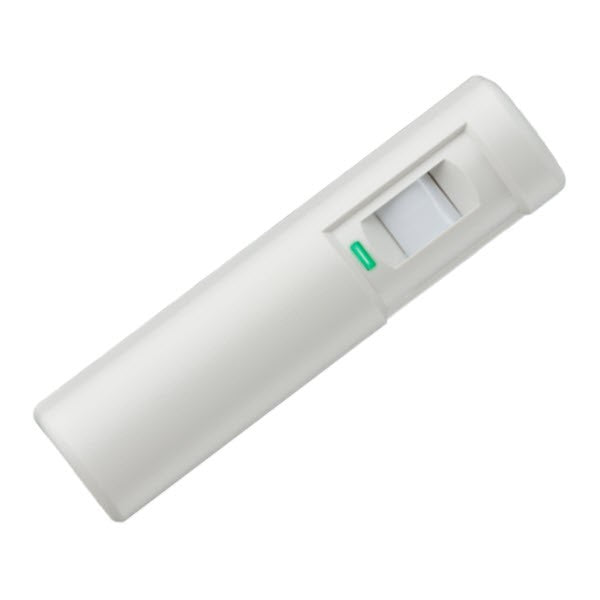

Bosch DS150I

The Bosch DS150I is a request-to-exit (REX) motion detector designed to integrate with access control and door control systems in commercial buildings, providing automatic exit detection when personnel approach secured doorways. The detector monitors a 2.4 x 3.0 meter (8 x 10 feet) coverage area using passive infrared motion sensing technology, with adjustable relay latch time up to 60 seconds. When motion is detected in the monitored zone, the device triggers its dual Form C relay contacts to command door strike release or similar access control functions, supporting both fail-safe and fail-secure programming modes for flexible security integration.

Key Features

• Request-to-Exit motion detection for automated door access control
• Dual Form C relay outputs for flexible door control integration
• Wide coverage area: 2.4 m x 3.0 m (8 ft x 10 ft)
• Adjustable relay latch time up to 60 seconds
• Programmable fail-safe or fail-secure operating modes
• Wrap-around detection pattern with wall or ceiling mounting options
• High-impact ABS plastic enclosure (light gray)
• Low current draw: 26 mA at 12 VDC

Technical Specifications

• Detection Type: Passive infrared (PIR) motion sensor
• Coverage Area: 2.4 m (8 ft) height x 3.0 m (10 ft) width
• Dimensions: 6.25 inches (L) x 1.5 inches (W) x 1.5 inches (D)
• Power Supply: 12/24 VAC or 12/24 VDC
• Current Draw: 26 mA at 12 VDC
• Relay Output: Two Form C contacts, adjustable 0-60 second latch time
• Operating Temperature: -29°C to +49°C (-20°F to +120°F)
• Installation: Wall or ceiling mount

Certifications

• UL 294 Listed access control device
• ULC-S319 Class I certified for Canada
