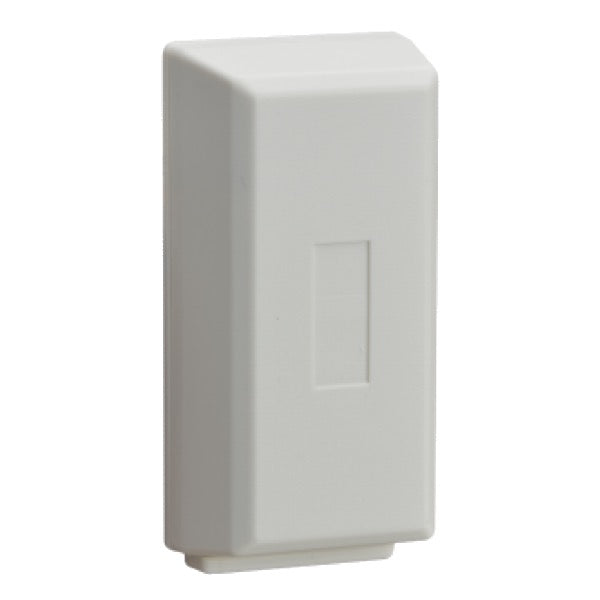

Bosch DS7465I

The Bosch DS7465I is a single input/output module for multiplex fire alarm and security systems, using two multiplex zone addresses to supervise one power-limited input zone while providing one DIP-switch-programmable Form C relay output. Designed for UL-listed fire and security applications, this module activates its output relay on various system events—alarm, supervision, or other configured triggers—and supports standard contact supervision with normally-open (NO) or normally-closed (NC) contacts. The DS7465I enables flexible integration of auxiliary devices, remote annunciators, or zone-level control logic into multiplex systems, with support for up to sixty modules on a compatible control panel.

Key Features

• Single input zone supervision for multiplex fire alarm systems
• Form C relay output with DIP switch programming for flexible activation modes
• Compatible with fire and security UL-listed applications
• Supports up to 60 modules per compatible control panel
• DIP-switch configurable for easy field programming without control panel access
• Typically serves as auxiliary output or remote annunciator interface

Technical Specifications

• Input: One power-limited zone (NO or NC contact supervision)
• Output: One Form C relay (DIP switch programmable activation)
• Multiplex Addressing: Uses two multiplex zone addresses
• Maximum Impedance: 4.05 Ω at 20°C (68°F)
• Wiring Distance: Approximately 76 meters at 0.65 mm (22 AWG) wire
• Fire Installations: Requires Multiplex-zone Fire EOL resistors (P/N 28010)
• Supervision: Automatic contact supervision on input zone

Certifications

• UL Listed for fire alarm system applications
• UL Listed for security system applications
