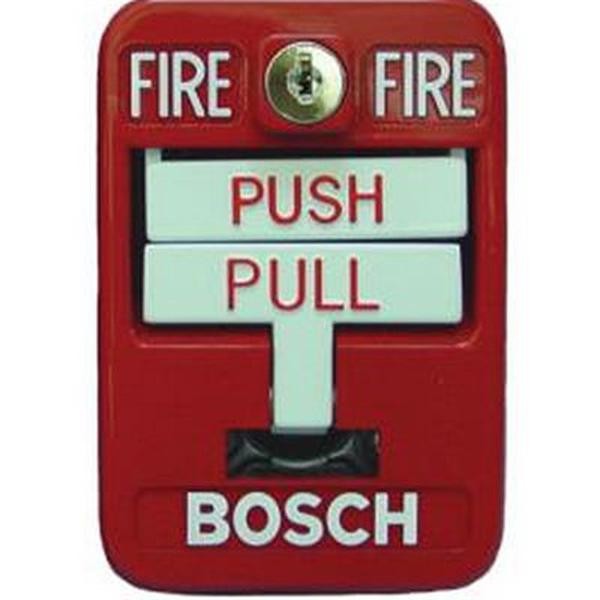

Bosch FMM-462-D

The Bosch FMM-462-D is a double-action pull station designed to minimize nuisance alarms in high-traffic areas while maintaining reliable fire alarm activation in emergencies. Unlike single-action stations, this POPIT module requires two deliberate actions—lifting the protective cover and pulling the handle—to trigger the alarm system, significantly reducing accidental activations in public spaces, warehouses, and facilities with pedestrian traffic. The die-cast metal housing with 14-gauge plated steel backing and corrosion-resistant construction ensures durability in demanding environments, while the latching alarm lever provides clear visual feedback of activation status. The key-locked reset mechanism adds tamper-proof security, ensuring the station cannot be reset without proper authorization.

Key Features

• Double-action activation mechanism to minimize false alarms in high-traffic environments
• Die-cast metal housing with corrosion-resistant plated steel backing and red epoxy coating
• Latching alarm lever with key-locked reset provides clear status indication and tamper-proof operation
• ADA-compliant design for accessibility in commercial facilities
• Single-gang mounting compatible with standard electrical boxes for flexible installation
• POPIT addressable module for network-based fire alarm systems

Technical Specifications

• Dimensions: 4.75 inches height x 3.2 inches width x 0.875 inches depth
• Contact: SPST (single pole, single throw) normally open circuit
• Housing Material: Die-cast metal with 14-gauge (1.9 mm) plated steel backing
• Finish: Red epoxy coating
• Connection: Two-wire POPIT data expansion circuit compatible with Bosch G Series Control Panels
• Mounting: Single-gang box compatible

Certifications

• UL Listed as initiating device for fire alarm systems
• ADA compliant for commercial accessibility standards
