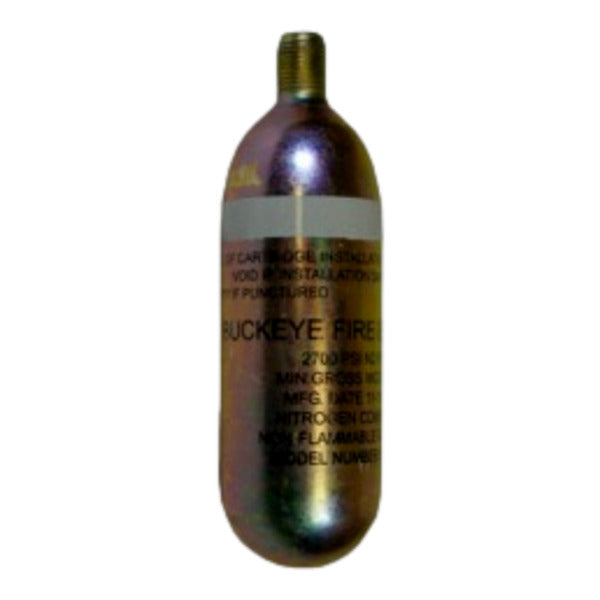

Buckeye BFR-AC-L

The Buckeye BFR-AC-L is the large actuation nitrogen cartridge for the Buckeye Kitchen Mister wet chemical fire suppression system, sized for high-volume V-bank hoods and multi-appliance cook lines such as those found in hospitals and university cafeterias. When the system trips, a firing pin punctures the cartridge's sealed diaphragm and releases high-purity dry nitrogen through pneumatic pulse hydraulics, generating enough pressure to overcome the spring tension of multiple agent-cylinder valve actuators and fully discharge the system within the first 500 milliseconds.

Key Features

• Sized to actuate 1 to 5 agent cylinders (BFR-5 through BFR-20) on a single system
• 10-turn threaded seating for a gas-tight seal at the cylinder valve
• Sold as a 2-pack; single-use, sealed vessel that cannot be refilled or reused once punctured

Technical Specifications

• Propellant: high-purity dry nitrogen (N2)
• Discharge time: full release within the first 500 milliseconds of actuation
• Semi-annual inspection requires weight verification against the factory-stamped weight

Certifications

• UL 300 and ULC Listed; meets NFPA 17A wet chemical suppression system requirements
