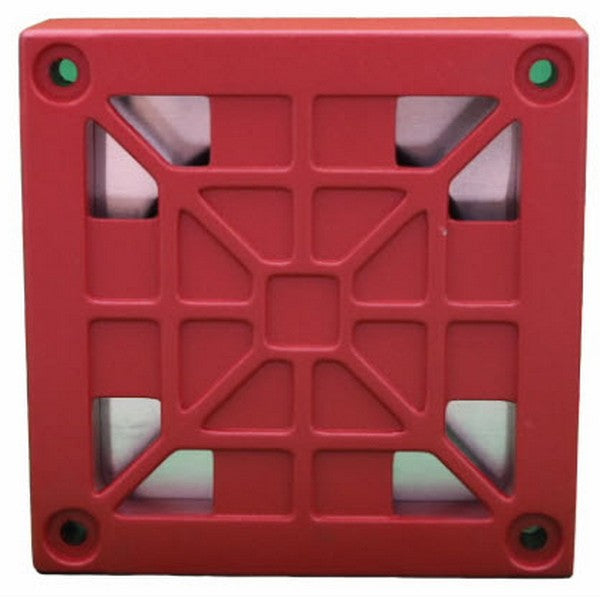

Eaton Wheelock 31T-115-R

The Eaton Wheelock 31T-115-R is a high-performance electronic horn designed for life-safety applications requiring strong audible notification. Operating at 115VAC with a resonant grille design and die-cast metal housing, this horn produces 87 dBA at 10 feet while maintaining low current consumption, suitable for indoor and outdoor ceiling or wall mounting in vandal-prone environments.

Key Features

• High-performance electronic horn with 87 dBA output at 10 feet
• 115VAC operation with low current draw (0.160A maximum)
• Rugged die-cast metal housing with vandal-resistant construction
• Red textured finish for visibility and aesthetics
• Screw terminal inputs for simple wiring
• Resonant grille design for superior sound projection
• Indoor or outdoor mounting capability
• Ceiling or wall mounting options

Technical Specifications

• Operating Voltage: 115VAC, 50/60 Hz
• Current Consumption: 0.160A maximum
• Sound Output: 87 dBA at 10 feet
• Dimensions: 4" H x 4" W x 1.32" D
• Weight: 1.34 pounds
• Connections: Screw terminal inputs
• Housing Material: Die-cast metal with textured red finish
• Application: Audible notification appliance for fire/life-safety systems

Certifications

• UL Listed
• CSFM Certified
• FM Approved
