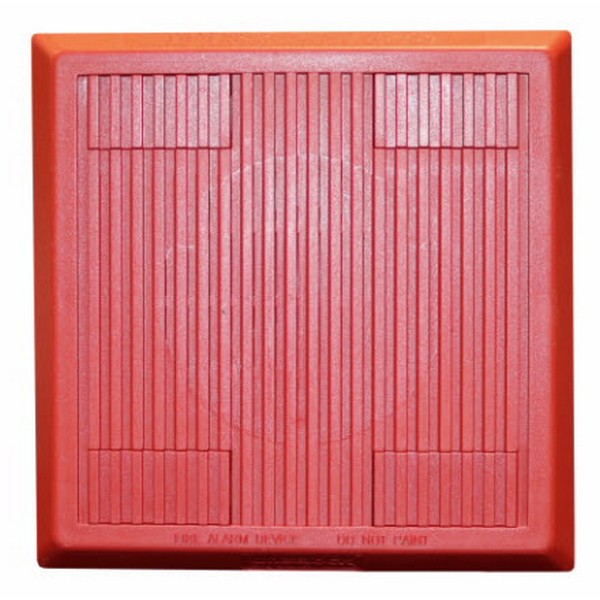

Eaton Wheelock AMT-12/24-R

Key Features

• Multitone horn with three isolated audio inputs for prioritized audible signal control
• Dual voltage operation (12V or 24V DC) simplifies system integration and reduces inventory
• High sound output (98 dBA at 10 feet on HIGH setting) provides reliable audible notification
• Two selectable output levels (STANDARD and HIGH) for space-specific volume control
• Standard reverse polarity supervision and IN/OUT field wiring support

Technical Specifications

• Voltage: 12V DC or 24V DC (selectable using filtered or unfiltered power supply)
• Sound Output: 98 dBA (HIGH), lower STANDARD setting also available
• Measurement: At 10 feet at alarm HORN SETTING, anechoic measurement per UL standards
• Mounting: Wall mount, red housing
• Application: 2-8 wire configuration for flexible system design
• Wiring: Accepts #12 to #18 AWG wiring with reverse polarity supervision

Certifications

• UL Listed for fire alarm audible notification
• Designed for commercial and industrial fire safety applications
