Eaton Wheelock ASWP-2475C-FR

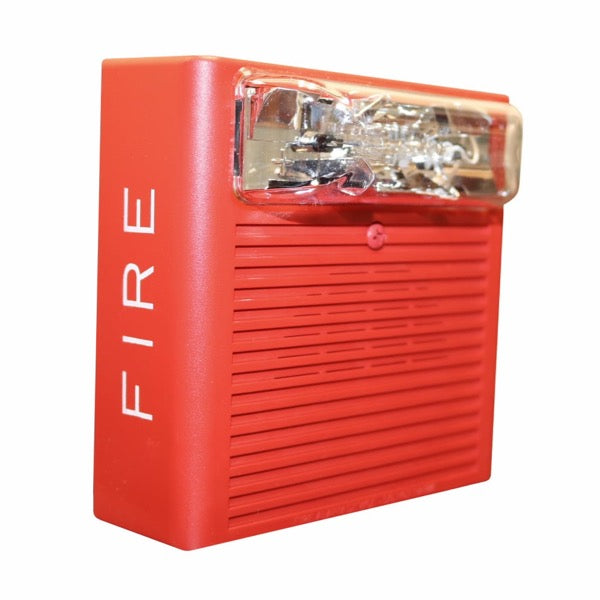

Eaton Wheelock ASWP-2475C-FR Weatherproof Ceiling-Mount Horn Strobe (Red, “FIRE” Lettering)

The Eaton Wheelock ASWP-2475C-FR is a weatherproof, ceiling-mounted horn strobe designed for reliable audible and visual signaling in outdoor and harsh indoor environments. Featuring a red housing with “FIRE” lettering and a clear lens, it is suitable for fire alarm systems requiring robust notification appliances.

Key Features:

• Weatherproof Design: UL Listed for outdoor use under UL 1638 and UL 1971 standards, with an extended temperature range of –40°F to 150°F (–40°C to 66°C), ensuring durability in extreme conditions.

• Strobe Intensity: Provides a fixed candela rating of 15 cd for indoor applications and up to 180 cd for outdoor applications, delivering effective visual alerts.

• Horn Output: Offers field-selectable sound output levels (High, Medium, Low) and tone settings (Continuous or Temporal Code 3), allowing customization based on application requirements.

• Synchronization Capability: Compatible with Wheelock’s DSM Sync Modules and power supplies, ensuring synchronized strobe flashes and horn tones across multiple devices.

• Mounting Options: Designed for ceiling mounting with the WPBB-R weatherproof backbox (sold separately), facilitating surface or semi-flush installations.

• Electrical Specifications: Operates at 24 VDC with a voltage range of 16–33 VDC; maximum RMS current draw is 0.168 A (DC) at high dBA setting.

Note: The ASWP-2475C-FR model has been discontinued. Recommended replacements include the Eaton Wheelock EL4XHS-FR or EL3RHS-FR models, which offer enhanced features and compliance with current standards.
