Condition: New

Eaton Wheelock CH70-24MCW-FW

Chime-Strobe Sq Wall 24 VDC 15/30/75/110Cd White

Vendor: Eaton Wheelock

Type: Notification > Chime-Strobe

SKU: CW-N2C2-9408

$171.99

Shipping calculated at checkout.

Out of stock; call for lead time

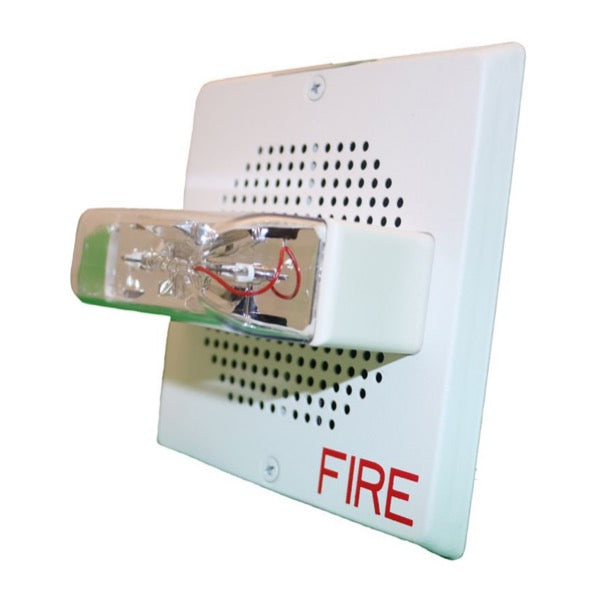

Eaton Wheelock CH70-24MCW-FW Wall-Mount Chime Strobe (White, “FIRE” Lettering)

The Eaton Wheelock CH70-24MCW-FW is a white, wall-mounted chime strobe designed for indoor fire alarm and emergency communication systems. Part of the CH Series, it combines clear audible signaling with synchronized visual alerts, ensuring effective occupant notification.

Key Features:

Multi-Candela Xenon Strobe: Features field-selectable candela settings of 15, 30, 75, and 110 cd, providing flexibility to meet various room sizes and lighting conditions.
Adjustable Chime Settings: Offers four field-selectable chime tones—1 Hz, 2 Hz, Coded, and Temporal 3 (T3)—with volume control, allowing customization based on application requirements.
Low Current Draw: Efficient design minimizes power consumption, reducing the load on the fire alarm control panel.
Synchronization Capability: Compatible with Wheelock’s DSM Sync Modules, Power Supplies, and SAFEPATH products, ensuring synchronized strobe flashes and chime tones across devices.
Easy Installation: Designed for flush or surface mounting to standard electrical boxes; includes IN/OUT screw terminals for quick wiring using #12 to #18 AWG wires.
Regulatory Compliance: Meets UL 1971 and UL 464 standards for signaling devices for the hearing impaired and private mode audible signal appliances, respectively.
