Eaton Wheelock E50H-24MCWH-FW
Speaker-Strobe Hi-Fi Sq Wall Hi-Cd 135/185Cd White

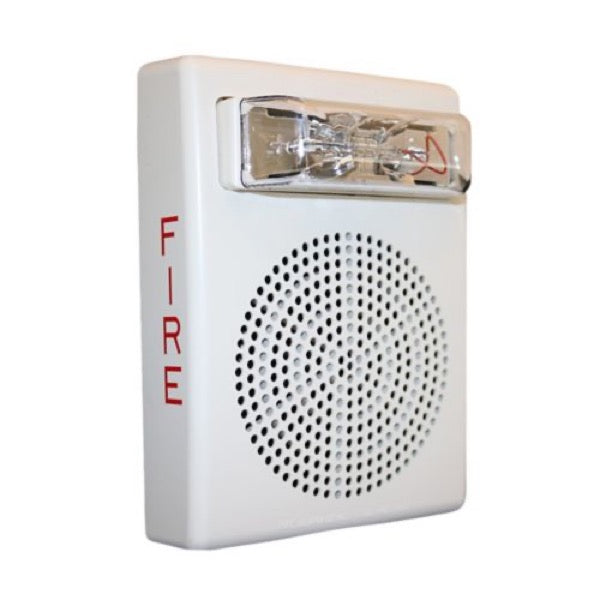

Eaton Wheelock E50H-24MCWH-FW High Fidelity Wall-Mount Speaker Strobe (White, FIRE Lettering, 135/185 cd)
The Eaton Wheelock E50H-24MCWH-FW is a high-fidelity wall-mounted speaker strobe designed for indoor emergency communication and fire alarm systems. Featuring a white housing with “FIRE” lettering and a clear lens, it delivers crisp voice messages and synchronized visual alerts, ensuring effective occupant notification.
Key Features
-
High-Fidelity Audio Output: Offers a wide frequency response range of 300 to 8000 Hz, ensuring clear and intelligible voice messages and tone signaling.
-
Field-Selectable Power Taps: Supports 25 or 70 VRMS operation with selectable power taps ranging from 1/8 to 2 watts, allowing customization based on application requirements.
-
Multi-Candela Xenon Strobe: Features field-selectable candela settings of 135 and 185 cd, providing flexibility to meet various room sizes and lighting conditions.
-
Low Profile Design: Incorporates a speaker mounting plate with a snap-on grille cover, eliminating visible mounting screws for a clean appearance.
-
Easy Installation: Designed for flush mounting to a standard 4-inch square backbox without the need for an extension ring; includes IN/OUT screw terminals for quick wiring using #12 to #18 AWG wires.
-
Synchronization Capability: Compatible with Wheelock’s DSM Sync Modules, Power Supplies, and SAFEPATH products, ensuring synchronized strobe flashes across devices.
-
Regulatory Compliance: Meets UL 1971, UL 1480, ULC-S526, ULC-S541 standards, and complies with NFPA 72 and ADA requirements.
-
Operating Voltage: Designed for 24 VDC systems, operating within a voltage range of 16.0 to 33.0 VDC.
-
Operating Temperature Range: Functions reliably in temperatures from 33.8°F to 120.2°F (0°C to 49°C) with a maximum humidity of 93%.
