Eaton Wheelock E60-24MCCH-FW
Speaker-Strobe 2W Round Ceil Hi-Cd White

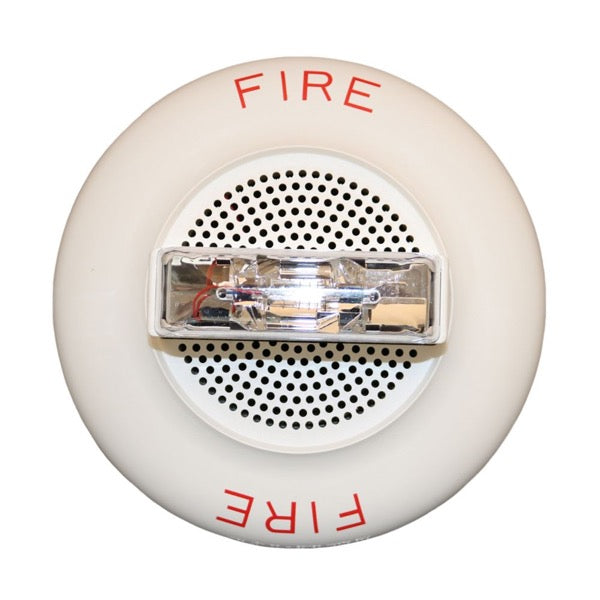

Eaton Wheelock E60-24MCCH-FW Ceiling-Mount Speaker Strobe (White, “FIRE” Lettering, 115/177 cd)
The Eaton Wheelock E60-24MCCH-FW is a ceiling-mounted speaker strobe designed for indoor fire alarm and emergency communication systems. Featuring a white housing with “FIRE” lettering and a clear lens, it delivers clear voice messages and synchronized visual alerts, ensuring effective occupant notification.
Key Features:
-
High-Intensity Xenon Strobe: Offers field-selectable candela settings of 115 and 177 cd, providing flexibility to meet various room sizes and lighting conditions.
-
Dual Voltage Operation: Compatible with both 25 and 70 VRMS audio systems, offering versatility in system design.
-
Field-Selectable Power Taps: Supports power taps ranging from 1/8 to 2 watts, allowing customization based on application requirements.
-
High-Fidelity Audio Output: Delivers clear and intelligible voice messages and tone signaling across a frequency range of 400 to 4000 Hz.
-
Low Profile Design: Incorporates a speaker mounting plate with a snap-on grille cover, eliminating visible mounting screws for a clean appearance.
-
Easy Installation: Designed for flush mounting to a standard 4-inch square backbox; includes IN/OUT screw terminals for quick wiring using #12 to #18 AWG wires.
-
Synchronization Capability: Compatible with Wheelock’s DSM Sync Modules, Power Supplies, and SAFEPATH products, ensuring synchronized strobe flashes across devices.
-
Regulatory Compliance: Meets UL 1971, UL 1480, CSFM, and FCC Part 15 standards, ensuring adherence to safety and performance requirements.
-
Operating Temperature Range: Functions reliably in temperatures from 33.8°F to 120.2°F (0°C to 49°C) with a maximum humidity of 93%.
