Eaton Wheelock E70-24MCW-FW
Speaker-Strobe 24V w/Fire Wall White

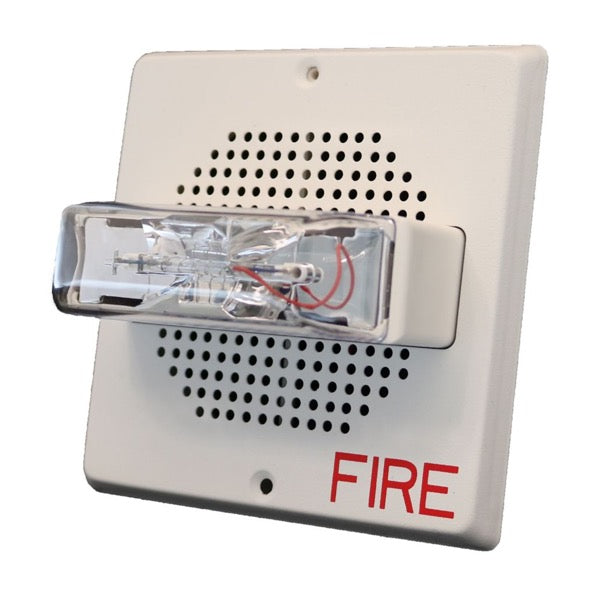

Eaton Wheelock E70-24MCW-FW Wall-Mount Speaker Strobe (White, FIRE Lettering)
The Eaton Wheelock E70-24MCW-FW is a high-performance, wall-mounted speaker strobe designed for indoor fire alarm and emergency communication systems. Featuring a white housing with “FIRE” lettering and a clear lens, it delivers both audible and visual alerts to ensure occupant safety.
Key Features
-
Multi-Candela Xenon Strobe: Offers field-selectable candela settings of 15, 30, 75, and 110 cd, allowing customization based on specific application requirements.
-
Dual Voltage Operation: Compatible with both 25 and 70 VRMS audio systems, providing flexibility in system design.
-
Field-Selectable Power Taps: Supports 1/8, 1/4, 1/2, 1, and 2-watt settings, enabling precise control over sound output levels.
-
High Efficiency Design: Delivers clear and intelligible voice messages and tone signaling across a frequency range of 400 to 4000 Hz.
-
Low Profile Aesthetic: Features a sleek design with a speaker mounting plate and a two-screw grille cover for easy installation and a clean appearance.
-
Synchronization Capability: Compatible with Wheelock’s DSM Sync Modules, Power Supplies, and SAFEPATH products to ensure synchronized strobe flashes across devices.
-
Regulatory Compliance: UL Listed under Standards 1971 (Signaling Devices for the Hearing Impaired) and 1480 (Speaker Appliances); compliant with NFPA 72 and ADA requirements.
