Eaton Wheelock ET70WP-24185W-FW

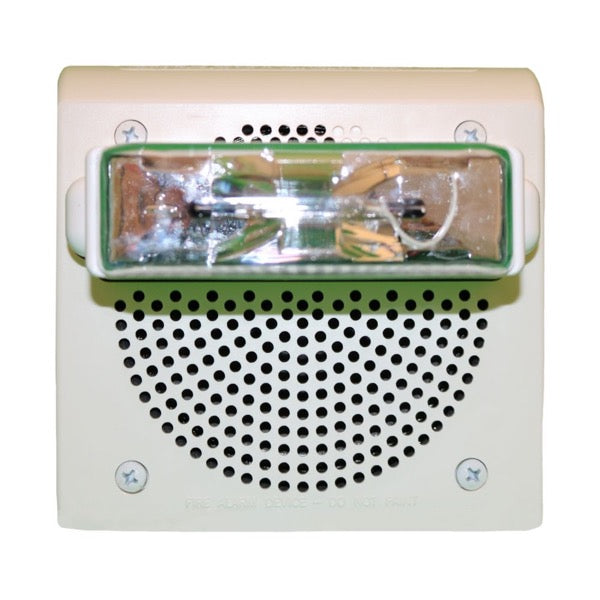

Eaton Wheelock ET70WP-24185W-FW - Weatherproof Speaker Strobe

Key Features

• Wall-mounted weatherproof speaker strobe for outdoor installations
• White housing with clear lens for maximum visibility
• 4-inch speaker for voice intelligibility and emergency notification
• Dual voltage: 25/70V compatible audio systems
• Xenon strobe with outdoor-rated intensity
• Engineered for extreme environmental conditions
• Temperature rated: –40°F to 150°F
• Must mount to weatherproof backbox (IOB) for outdoor use

Technical Specifications

• Voltage: 25/70V RMS (speaker compatible)
• Candela: 30 cd (some variants 75 cd)
• Speaker Power: 1/8 to 2 watts selectable
• Frequency Range: 400-4000 Hz
• Operating Temperature: –40°F to 150°F (–40°C to 66°C)
• Maximum Humidity: 95%
• Housing: White UV stabilized plastic
• Lens: Clear Lexan
• Mounting: Wall mount with weatherproof backbox (IOB) required for outdoor
• Strobe Type: Xenon flash

Certifications & Standards

• UL Standard 1638 (Outdoor)
• UL Standard 1971
• UL Standard 1480
• NFPA 72 compliant
• ADA accessible
• Weatherproof rated for outdoor applications
