Eaton Wheelock HS-24-R

Eaton Wheelock HS-24-R

Horn 24V Red

SKU CW-N2A4-9239
Sold out
$55.99
Availability: Out of stock call for lead time

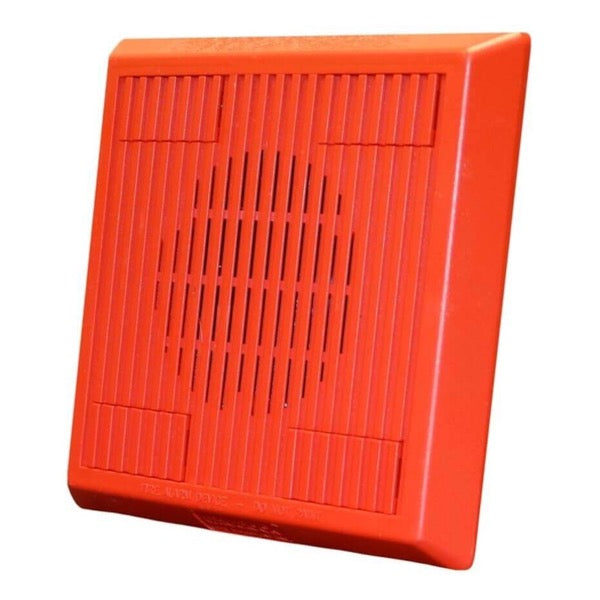

The Wheelock HS-24-R is a red, wall-mounted horn designed for indoor fire alarm and emergency communication systems. Part of Eaton’s HS Series, it offers reliable audible signaling with customizable settings to suit various application needs.

Key Features:

  • Selectable Sound Patterns: Choose between continuous tone or temporal (Code 3) pattern to meet specific notification requirements.

  • Adjustable Volume Settings: Three field-selectable dBA levels—90, 95, and 99 dBA—allow for optimal sound output based on the environment.

  • Voltage Range: Operates within a regulated voltage range of 16 to 33 VDC, accommodating both filtered DC and unfiltered full-wave rectified (FWR) power sources.

  • Low Current Draw: Efficient design ensures minimal power consumption, reducing the load on the fire alarm control panel.

  • Compact Design: Dimensions of 5.13” W x 5.13” H x 3.15” D make it suitable for various installation spaces.

  • Compliance: Meets UL 464 standards for audible signaling appliances and is ADA compliant when installed per guidelines.
