Eaton Wheelock HSW

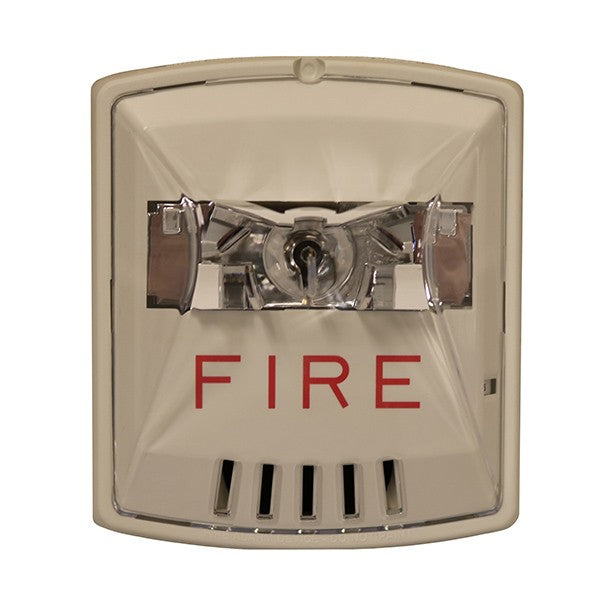

Eaton Wheelock HSW - Exceder Horn Strobe

Key Features

• Wall-mounted Exceder horn strobe with xenon strobe and white housing
• FIRE lettering with clear lens for maximum visibility
• 8 candela settings: 15, 1575, 30, 75, 95, 110, 135, 185 cd
• 3 selectable sound levels: 90, 95, 99 dB
• 12/24V DC dual voltage operation
• High-efficiency optics minimize current draw for greater appliance circuit capacity
• Tool-free setting adjustment located behind appliance
• Voltage test points for troubleshooting and AHJ inspection

Technical Specifications

• Voltage: 12/24V DC
• Candela Options: 15, 1575, 30, 75, 95, 110, 135, 185 cd
• Sound Output: 90, 95, 99 dB (selectable)
• Mounting: Wall mount
• Housing: White plastic with FIRE label
• Lens: Clear
• Operating Temperature: –40°F to 150°F
• Strobe Type: Xenon

Certifications & Standards

• UL Standard 1971
• UL Standard 1480
• CSFM
• FM (Factory Mutual)
• ADA/NFPA compliant
• Note: Discontinued; replaced by Eaton Wheelock ELHSW
