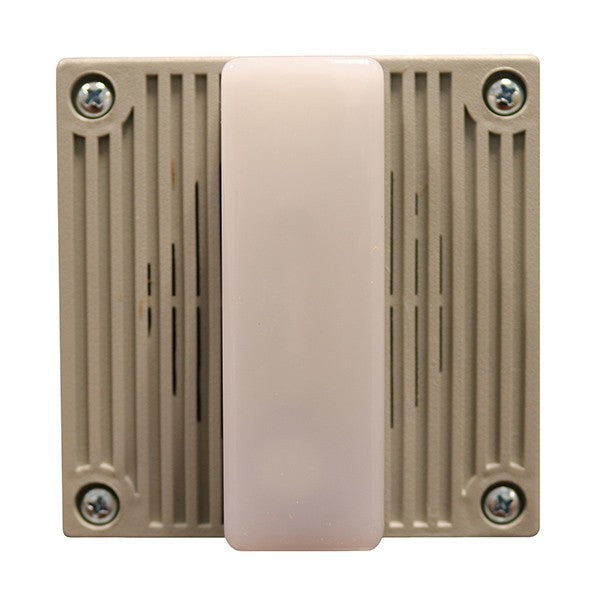

Eaton Wheelock MT4-115-WH-VNS

Eaton Wheelock MT4-115-WH-VNS - Multitone Horn Strobe

Key Features

• Wall-mounted multitone horn strobe with 120VAC operation
• Gray housing for modern aesthetic with fire alarm visibility
• 8 field-selectable audible tones for diverse alarm requirements
• Xenon strobe with high candela rating for outdoor visibility
• 115 cd strobe intensity suitable for outdoor applications
• Two sound level options: Standard and High dBA
• Dip switch configuration for tool-free setup
• Indoor/Outdoor rated construction

Technical Specifications

• Voltage: 120 VAC
• Sound Level: 99 dBA (selectable Standard/High)
• Candela Rating: 115 cd
• Tone Options: 8 field-selectable tones (Horn, Bell, March Time Horn, Code-3 Tone, Code-3 Horn, Slow Whoop, Siren, Hi/Lo)
• Mounting: Wall mount
• Housing: Gray UV stabilized plastic
• Temperature Range: –40°F to 150°F (–40°C to 66°C)
• Lens: Clear
• Strobe Type: Xenon

Certifications & Standards

• CSFM (California State Fire Marshal)
• BFP (Chicago)
• FM (Factory Mutual)
• UL (Underwriters Laboratories)
• MEA (New York City)
• ADA compliant
