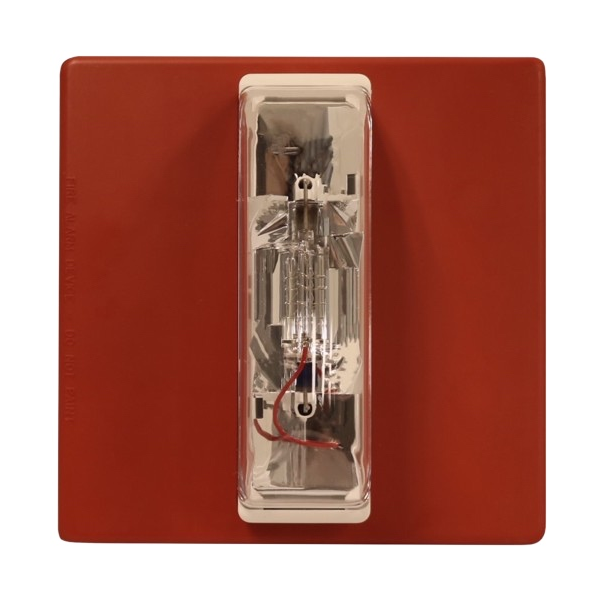

Eaton Wheelock RSS-24MCWH-NR

Eaton Wheelock RSS-24MCWH-NR - Strobe with Multi-Candela

Key Features

• Compact fire alarm strobe appliance with high-intensity xenon flash
• Multi-candela configuration with field-selectable brightness settings
• 24V DC operation for standard fire alarm circuits
• Clear lens for high visibility
• Compact design suitable for various mounting configurations
• 1 flash per second minimum over regulated voltage range

Technical Specifications

• Voltage: 24V DC (16.0-33.0 VDC regulated range)
• Candela Settings: 15, 30, 75, 110 cd (multi-candela options)
• Lamp Type: Xenon
• Lens: Clear Lexan
• Dimensions: 4.765"H/W × 2.6"D
• Weight: 0.39 lb
• Housing: UV stabilized plastic (white)
• Operating Temperature: 33.8°F to 120.2°F (0°C to 49°C)
• Maximum Humidity: 93%
• Flash Rate: 1 flash per second minimum

Certifications & Standards

• MEA (New York City)
• UL Standard 1971
• CSFM (California State Fire Marshal)
• FM (Factory Mutual)
• BFP (Chicago)
• ULC (Canada)
• Indoor use only
