Eaton Wheelock RSSWP-2475W-FR

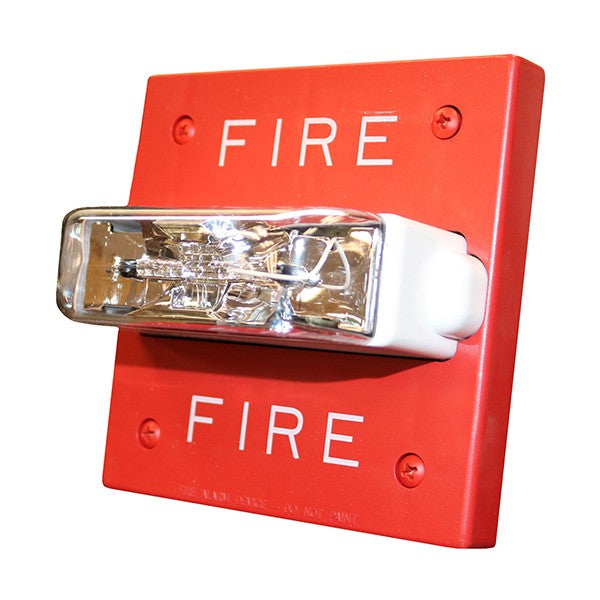

Eaton Wheelock RSSWP-2475W-FR - Weatherproof Strobe

Key Features

• Wall-mounted weatherproof strobe appliance for outdoor fire alarm systems
• Red housing with FIRE lettering for standard fire alarm visibility
• Xenon strobe with Lexan construction for weather resistance
• Field-selectable candela: 56, 77, 135, 185 cd options
• 24V DC operation for outdoor notification circuits
• Extended temperature range: –40°F to 150°F
• High-efficiency design minimizes current consumption
• Maximum humidity rated: 95%

Technical Specifications

• Voltage: 24V DC
• Current Draw: 0.300/0.400 A DC
• Candela Settings: 56, 77, 135, 185 cd (field-selectable)
• Temperature Range: –40°F to 150°F (–40°C to 66°C)
• Maximum Humidity: 95%
• Housing: Red UV stabilized plastic
• Lens: Clear Lexan
• Lamp Type: Xenon
• Mounting: Wall mount
• Flash Rate: 1 flash per second over rated voltage

Certifications & Standards

• UL Standard 1971 (Signaling Devices)
• MEA (New York City)
• CSFM (California State Fire Marshal)
• FM (Factory Mutual)
• BFP (Chicago)
• ADA/NFPA/UFC/ANSI compliant
• OSHA 29 CFR 1910.165 compliant
