Eaton Wheelock SA-S70-24MCW-FR

Eaton Wheelock SA-S70-24MCW-FR - Self-Amplified Speaker Strobe

Key Features

• Supervised self-amplified speaker strobe for fire alarm voice systems

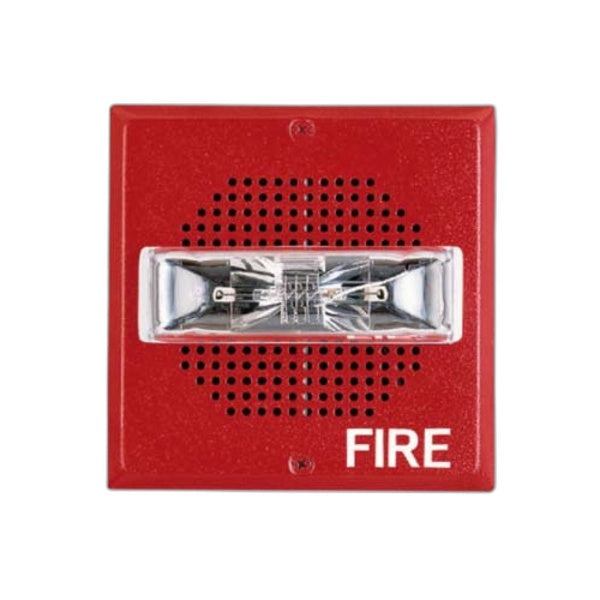

• Wall-mounted design with red housing and FIRE lettering
• 4-inch speaker with high intelligibility for emergency voice evacuation
• Xenon strobe with field-selectable candela: 15, 30, 75, 110 cd
• 24V DC operation with integrated amplification
• Power taps: 1/8W to 2W selectable
• Input voltage range: 16-33 VDC with integrated current control
• Designed for life safety and critical notification applications

Technical Specifications

• Voltage: 24V DC (16-33 VDC operating range)
• Power Output: 1/8W to 2W selectable
• Candela Settings: 15, 30, 75, 110 cd
• Speaker Type: 4-inch
• Sound Output: 84, 81, 77, 74, 71, 68 dBA (anechoic levels)
• Maximum Current Draw: 0.060-0.120A at different candela levels
• Frequency Range: 400-4000 Hz
• Operating Temperature: 0°C to 49°C (32°F to 120°F)
• Mounting: Wall mount
• Xenon strobe with polycarbonate lens

Certifications & Standards

• UL Standard 1480 (Speaker Appliances)
• UL Standard 1971 (Signaling Devices)
• UL Standard 1638
• NFPA 72 compliant
• ADA accessible
• SCIF-compatible (Sensitive Compartmented Information Facility)
