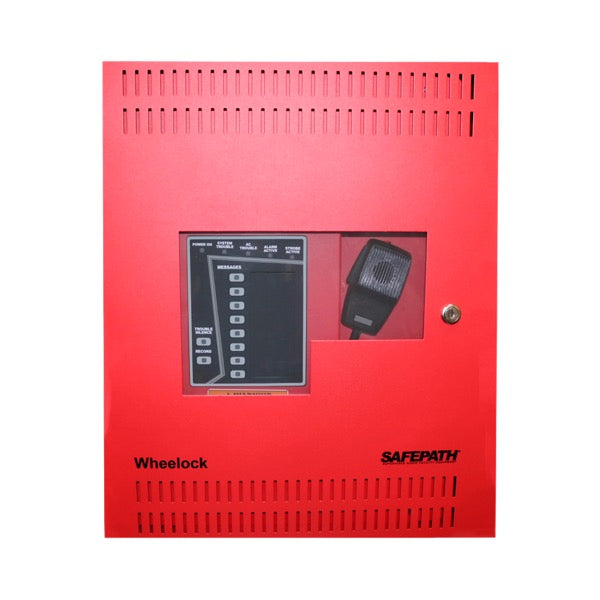

Eaton Wheelock SP40S

Eaton Wheelock SP40S - SAFEPATH Voice Evacuation System

Key Features

• Multi-function supervised paging, messaging, background music delivery, and emergency voice evacuation system
• Single-channel system with 40 watts of supervised high fidelity audio power
• 2 amps of supervised 24 VDC synchronized strobe power
• On-board digital voice messaging system with 8 standard emergency messages
• Hand-held microphone included
• Expandable to 5280 watts with optional audio power boosters (SPB-80/4, SPB-160, SPB-320)

Technical Specifications

• Audio Power Output: 40 watts supervised
• Strobe Power: 2 amps of supervised 24 VDC
• Speaker Compatibility: 25 or 70.7 volt options
• Input Voltage: 115 VAC
• Battery Backup: 24 VDC
• Dimensions: 21"H × 16"W × 6"D
• Weight: 36 lbs (without batteries)
• Operating Temperature: –40°F to 150°F
• Frequency Response: 400 to 4000 Hz

Certifications & Standards

• UL Standard 864 (9th edition)
• UL Standard 1711
• California State Fire Marshal (CSFM)
• New York City (MEA)
• FCC Part 15
• OSHA 1910.165
• ADA compliant
