Eaton Wheelock SP4Z-A/B

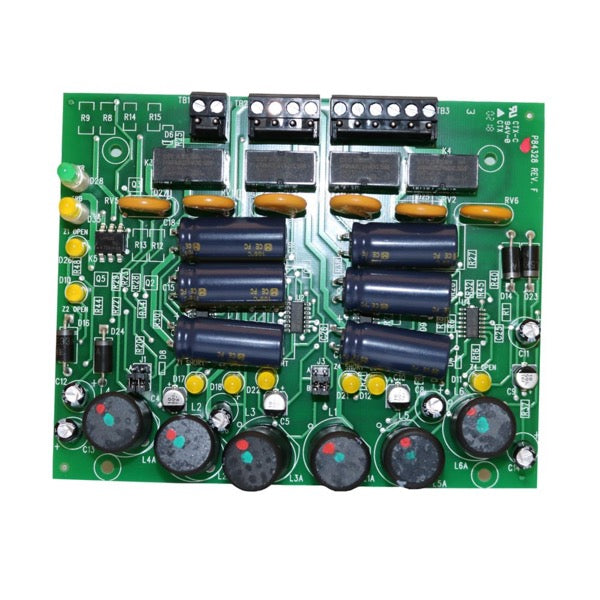

Eaton Wheelock SP4Z-A/B - Audio Splitter for SAFEPATH

Key Features

• Addressable Class A/B audio splitter for SAFEPATH4 emergency communication systems
• Expands one supervised audio output zone to multiple zones
• Maximum 4 Class B zones or 2 Class A zones from single input
• System-wide maximum: 68 Class B zones or 34 Class A zones
• Mounts inside SP40S panel enclosure on standoffs
• Designed for critical emergency mass notification systems
• RS485 communication protocol

Technical Specifications

• Type: Class A/B supervised audio zone splitter
• Expansion Capacity: 4 Class B zones or 2 Class A zones per unit
• System Capacity: Maximum 68 Class B or 34 Class A zones total
• Compatible Panels: SP40S, SPB-160, SPB-80/4
• Mounting: Internal panel enclosure (SP40S) or compatible booster panels
• Installation: Mounted on panel standoffs
• Multiple Units: 2 units on SPB-160, 1 unit on SPB-80/4
• Communication: RS485 addressable protocol

Certifications & Standards

• UL Standard 864 (Control Units for Fire Protective Signaling Systems)
• Indoor use only
• NFPA 72 compliant
• Emergency mass notification system component
