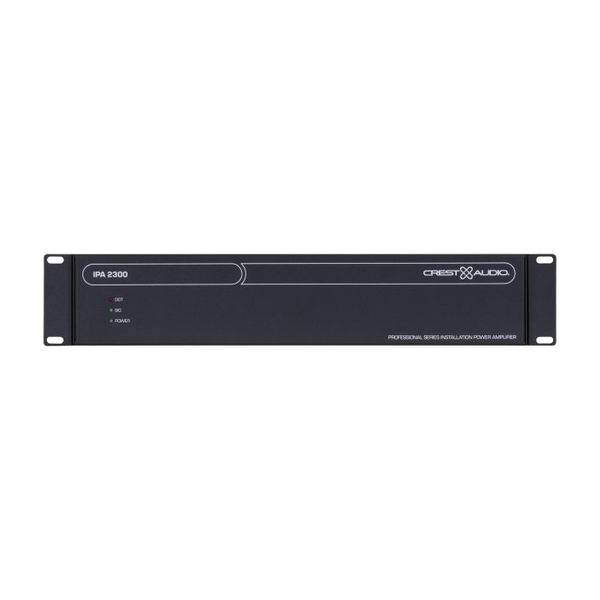

Crest Audio IPA-2300

The Crest Audio IPA 2300 is a 2-channel, 300-watt Class D mixer-amplifier built for background-music and paging systems in retail, restaurant, and waiting-room installations. Input 1 accepts a balanced mic or line signal over a Euro connector, while Input 2 takes a line-level source through dual RCA jacks; a level-sensing circuit automatically mutes Input 2 whenever the mic signal on Input 1 rises above an adjustable threshold, so a page always cuts through background music without the installer needing a separate mixer. The amplifier drives 4Ω direct loads or 25V/70V/100V constant-voltage speaker lines from the same output.

Key Features

• Automatic mic-priority muting: Input 2 mutes when Input 1's mic/line signal exceeds an adjustable (or defeatable) threshold
• Selectable output: 4Ω direct or 25V/70V/100V constant-voltage speaker lines
• SPS speaker protection and a high-pass filter that guards speaker transformers from low-frequency overload
• Bass and treble tone controls
• Dual-voltage 120/240VAC operation
• 2U rack-mount chassis with power, signal, and SPS status LEDs

Technical Specifications

• Power Output: 300W at 25V, 70V, or 100V constant-voltage taps
• Topology: Class D
• Minimum Load Impedance: 4Ω
• Frequency Response: 65Hz–20kHz (+0dB/-3dB)
• Inputs: Euro connector (balanced mic/line), dual RCA (line-level)
• Outputs: 5-pin barrier strips
• Dimensions (H×W×D): 3.45" × 19" × 13.25"
• Weight: 15.4 lbs
• AC Power: 120VAC or 220–240VAC, 50/60Hz
