DMP DMP-630F-R

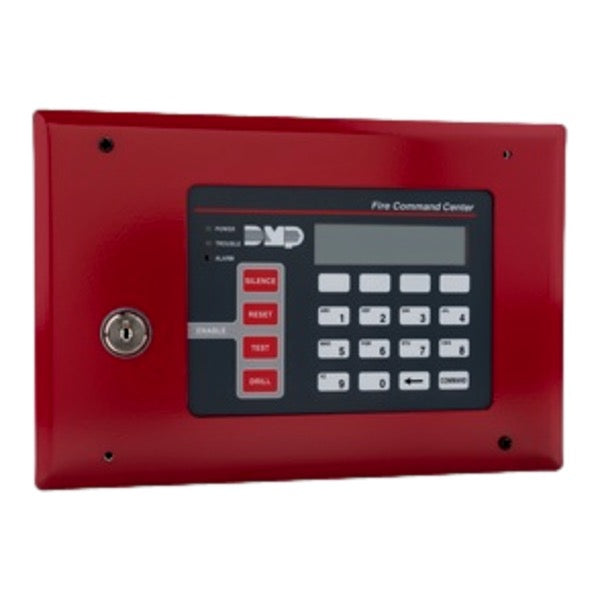

The DMP 630F-R is a 20-key remote fire command center featuring a 32-character full-text LCD display, giving fire personnel a secondary control and annunciation point for DMP XR150 and XR550 series fire panels. It includes dedicated function keys for silencing alarms, resetting the system, running system tests, and initiating fire drills.

Key Features

• 32-character full-text LCD display for plain-language system status
• Four dedicated function keys: Alarm Silence, System Reset, System Test, and Fire Drill, activated via a factory-installed keyswitch or a valid security code
• Power, Trouble, and Alarm status LEDs for at-a-glance monitoring
• Includes backbox and trim frame for flush or surface wall mounting

Technical Specifications

• Operating voltage: 8.5 to 15 VDC
• Current draw: 63 mA standby, 92 mA maximum
• Trim frame: 10.4" W x 7.0" H x 1.7" D; backbox: 8.75" W x 6.375" H x 2.5" D
• Compatible with DMP XR150 and XR550 series fire panels

Certifications

• UL Listed (ANSI/UL 864, ANSI/UL 985), ULC-S559-04
• California State Fire Marshal (CSFM) approved
• New York City FDNY COA #6167
• FCC Part 15 compliant
