Condition: New
DMP DMP-714-8
DMP DMP-714-8
Module 8 Class B Zone Expansion w/Enclosure
Regular price
$170.99
Sale price
$170.99
Regular price
Shipping calculated at checkout.
Out of stock; call for lead time

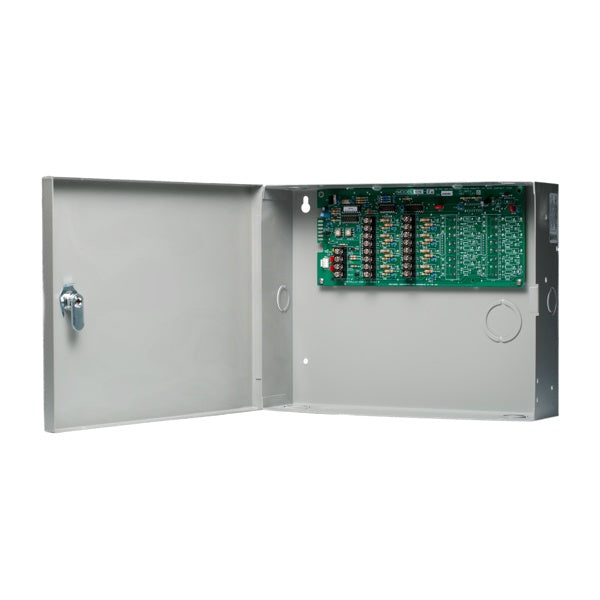

The DMP-714-8 is an eight-zone expansion module providing additional supervised zones for connecting burglary and non-powered fire alarm devices to DMP XT and XR series panels. The module includes 20-gauge steel enclosure, EOL resistors, and terminal strips for rapid installation.
Key Features
- Eight (8) supervised zones for burglary and fire devices
- Compatible with DMP XT and XR series panels
- Non-powered fire device support
- 20-gauge steel enclosure with conduit knockouts
- Included EOL resistors and lock with key
- Terminal block connections with LX-Bus jumper
Technical Specifications
- Operating Voltage: 8.8-15 VDC
- Zone Type: Burglary and Class B non-powered fire
- EOL Resistors: 1K to 4.7K Ohms (hardware dependent)
- Enclosure: 20-gauge steel with 1/2" and 3/4" knockouts
- Includes: 340 enclosure with lock and EOL resistors
- Wiring: 22 AWG (up to 500 ft), 18 AWG (up to 1000 ft)
- Communication: LX-Bus or Keypad Bus designation
Certifications
- UL Listed zone expansion module
- DMP XT/XR series compatible
- ANSI/UL 864 compliant
