Condition: New
DMP DMP-850D
DMP DMP-850D
Pull Station Manual Dual Action
Regular price
$72.99
Sale price
$72.99
Regular price
Shipping calculated at checkout.
Out of stock; call for lead time

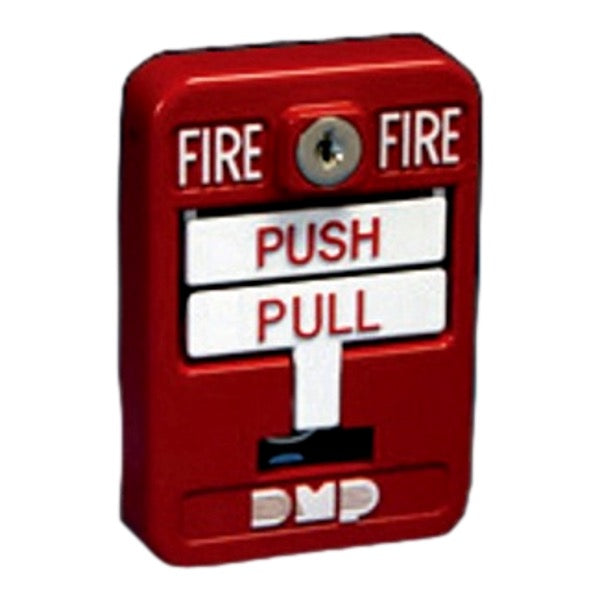

The DMP DMP-850D is a dual-action, die-cast metal manual fire alarm pull station with SPST gold-plated contacts and terminal strip connections, built to comply with ADA accessibility requirements. Pulling the handle actuates the internal switch to signal an alarm condition to any compatible DMP fire command processor, and the housing accepts either surface or flush mounting depending on the backbox used.
Key Features
- Dual-action operation reduces false/accidental activations
- Die-cast metal construction with gold-plated contacts to resist corrosion
- Red housing with raised white lettering; white "PULL" handle with raised red lettering
- ADA-compliant design
- Compatible with all DMP fire command processors
Technical Specifications
- Contact Type: SPST, terminal strip connections
- Switch Rating: 1 Amp @ 30 VDC
- Dimensions: 3.25"W x 4.75"H x 2.25"D
- Mounting: Surface-mount with DMP 850-SB backbox, weatherproof with 850-WP backbox, or flush-mount on standard single-gang switch box
Certifications
- UL Listed
- CSFM (California State Fire Marshal) approved
