Condition: New
DMP DMP-850S
DMP DMP-850S
Pull Station Single Action
Regular price
$64.99
Sale price
$64.99
Regular price
Shipping calculated at checkout.
Only 1 left!

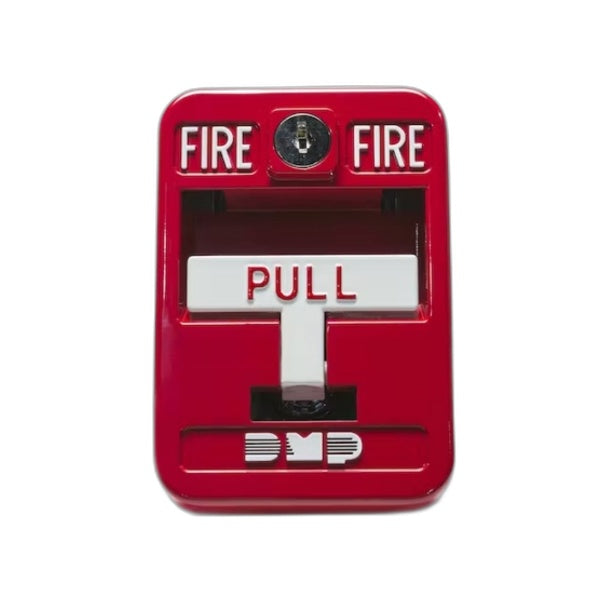

The DMP 850S is a single-action, manual fire alarm pull station featuring die-cast metal construction and raised white letters with a white pull handle. Designed for easy operation with ADA-compliant pull force requirements, the 850S integrates SPST contacts rated for 1 amp at 30 VDC and is compatible with all DMP control panels and addressable fire alarm systems.
Key Features
- Single-action manual fire alarm pull station with SPST switch contacts
- Die-cast metal construction with raised white lettering and white pull handle
- ADA-compliant pull force design for accessibility compliance
- Available configurations: standard, with addressable module, or weatherproof backbox options
- Compatible with all DMP fire alarm control panels
- Terminal strip connections for flexible wiring integration
Technical Specifications
- Dimensions: 3.25" W × 4.75" H × 2.25" D
- Contact Type: SPST (Single Pole Single Throw)
- Contact Rating: 1 Amp @ 30 VDC
- Connection: Terminal strip wiring
- Material: Die-cast metal with weatherproof finish
- Color: Red with white lettering and white pull handle
- Mounting: Surface or recessed with backbox options
- Optional addressable modules available (850S/711, 850S/711S)
Certifications
- UL Listed fire alarm manual pull station
- ADA (Americans with Disabilities Act) pull force compliant
- Compatible with UL-listed DMP fire alarm systems
