Condition: New
DMP DMP-893A
DMP DMP-893A
Module Dual Phone Line
Regular price
$144.99
Sale price
$144.99
Regular price
Shipping calculated at checkout.
Out of stock; call for lead time

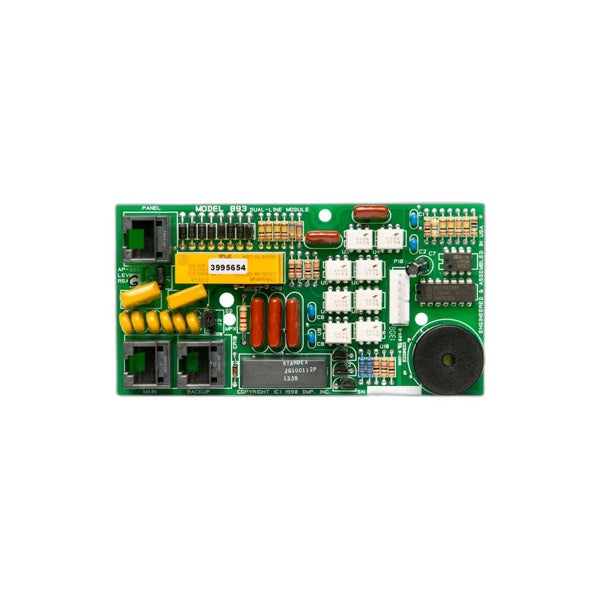

The DMP DMP-893A is a dual telephone line supervision module that allows compatible DMP command processors to detect and report a phone line failure to both the premises and the central monitoring station. It continuously monitors the primary and backup lines for a sustained voltage drop and automatically switches communication to the secondary line if the primary fails.
Key Features
- Supervises both primary and backup telephone lines for sustained voltage drop
- Built-in sounder plus keypad and central-station indication on line trouble
- Two-minute trouble delay and one-minute restore delay to reduce nuisance signaling
- Monitors panel CPU and sounds a trouble buzzer if the processor resets or stops functioning
Technical Specifications
- Maximum supervised telephone line impedance: 100 Ohms
- Compatibility: DMP XR100/XR500 and XR150/XR350/XR550 Series panels
- Installation: snaps into one of the enclosure's 3-hole mounting locations; connects via 7-conductor harness and a 2-foot phone cord
