Condition: New

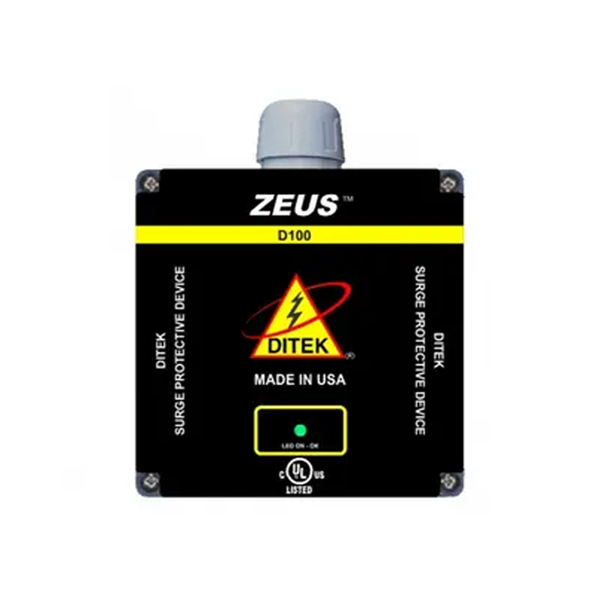

Ditek D100-120/2083Y
Ditek D100-120/2083Y
120/208 VAC 3 Phase Wye 4W(+G) 100Ka
Regular price
$624.99
Sale price
$624.99
Regular price
Shipping calculated at checkout.
Only 5 left!
The Ditek D100-120/2083Y is a Type 1 and Type 2 surge protective device built for 120/208 VAC three-phase wye electrical panels rated between 200A and 600A. It provides high-current surge suppression in a weatherproof enclosure suitable for indoor or outdoor installation.
Key Features
- Individually fused components for maximum performance and protection
- Diagnostic LED indicates system power and SPD function status
- NEMA 4X watertight housing with 1/2 inch NPT conduit fittings
Technical Specifications
- Surge current rating: 100,000 amps per phase, 50,000 amps per mode
- Configuration: 120/208VAC three-phase wye, 4-wire plus ground
- Operating frequency: 40-400 Hz; operating temperature: -40 to 60 deg C
- Dimensions: 4.7" x 4.7" x 2.4"; weight approximately 2 lb
Certifications
- UL 1449 listed, SPD Type 1 and Type 2
