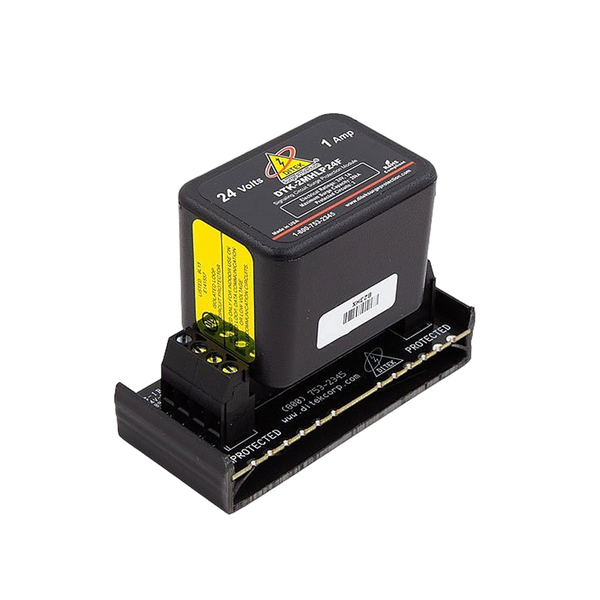

Ditek DTK-2MHLP24FWB

The Ditek DTK-2MHLP24FWB is a 24V, 2-pair modular surge protector for signaling circuits on fire alarm and life-safety systems, supplied on a hardwired Snap-Track base for direct field installation. It uses a hybrid protection design combining a silicon avalanche diode (SAD) with a gas discharge tube (GDT), and rather than simply clamping a surge, it opens the circuit once the protection element has been compromised so a failed module can't pass a fault through to the equipment behind it. The surge module itself is field-replaceable, so a technician can swap it on the base without re-terminating any wiring.

Key Features

• Protects up to 2 pairs of 24V circuits per module
• Hardwired base included; Snap-Track system expands to a common-ground, multi-base run protecting up to 10 pairs
• Opens the circuit when the surge protection is compromised, rather than continuing to pass a fault
• Field-replaceable module for fast servicing without disturbing field wiring
• Suitable for AC and DC low-voltage signaling applications

Technical Specifications

• Voltage: 24V, 2 protected circuit pairs
• Fuse: Integrated 1A fuse
• Protection technology: Hybrid SAD/GDT design
• Mounting: Hardwired base, Snap-Track multi-base compatible

Certifications

• UL497B Listed
