Condition: New

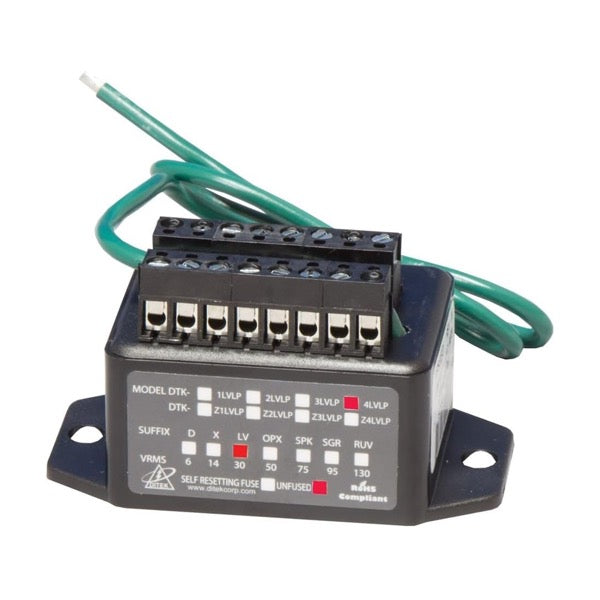

Ditek DTK-4LVLPLV
Ditek DTK-4LVLPLV
Surge Protection 4-20mA 22-16 24V
Regular price
$85.99
Sale price
$85.99
Regular price
Shipping calculated at checkout.
In stock!
The Ditek DTK-4LVLPLV is a 4-pair, 24V low-voltage surge protector for terminal strip installation on fire alarm and security system control loops. It provides protection for four 24V pairs simultaneously with UL 497B listed surge protection and field-replaceable design.
Key Features
- 4-pair 24V low-voltage protection in single module
- Terminal strip mounting for direct alarm panel integration
- Maximum surge current: 2,000 Amps per pair
- MCOV: 38 VDC; Clamp voltage: 47V
- Series connection with minimal insertion loss
- Field-replaceable for simplified maintenance
Technical Specifications
- Voltage Rating: 24V DC/AC
- Circuit Pairs: 4
- Wire Gauge: 22-16 AWG
- Max Surge Current: 2,000 Amps per pair
- Mounting: Terminal strip
- Dimensions: 1.6H x 3.0W x 1.6D inches
Certifications
- UL 497B Listed surge protector
