Ditek DTK-MRJPOES
Ditek DTK-MRJPOES
Only 9 left!

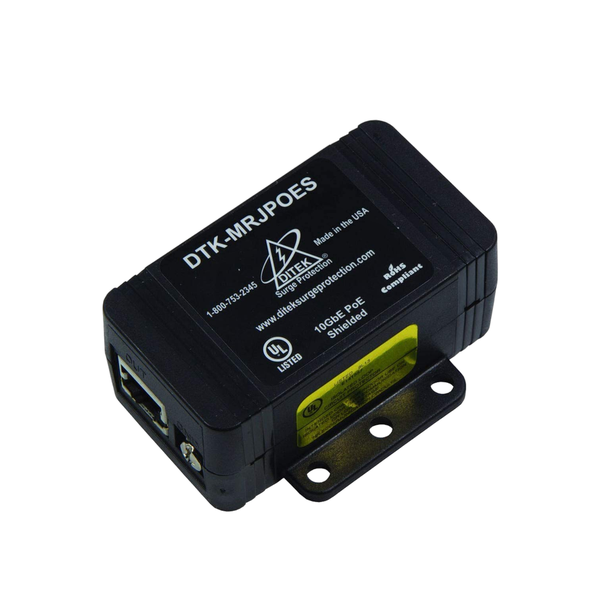

The Ditek DTK-MRJPOES is a single-channel surge protector for Power over Ethernet (PoE) runs, installed in-line on shielded RJ45 connections to protect network equipment from transient voltage on the data/power path. It supports data rates up to 10GbE over CAT5e, CAT6, or CAT6A cabling and combines silicon avalanche diode (SAD) and gas discharge tube (GDT) elements in a hybrid protection circuit. Because it's built for shielded twisted-pair (STP) cabling, it doesn't need a separate earth ground connection to function, which simplifies installation in racks and enclosures where a dedicated ground point isn't convenient.
Key Features
- Single-channel PoE surge protection on shielded RJ45 in/out connections
- Supports data speeds up to 10GbE without signal degradation
- Hybrid SAD + GDT protection circuit
- No separate earth ground required — grounds through the STP cable shield
- External grounding screw for installations that do want a dedicated ground
Technical Specifications
- Channels: 1 (single-channel)
- Cabling Support: CAT5e, CAT6, CAT6A; up to 10GbE
- Connectors: Shielded RJ45, in/out
- Compliance: IEEE PoE standards
Certifications
- UL497B listed for data circuit protection
