Ditek DTK-TSS1
Ditek DTK-TSS1
Only 1 left!

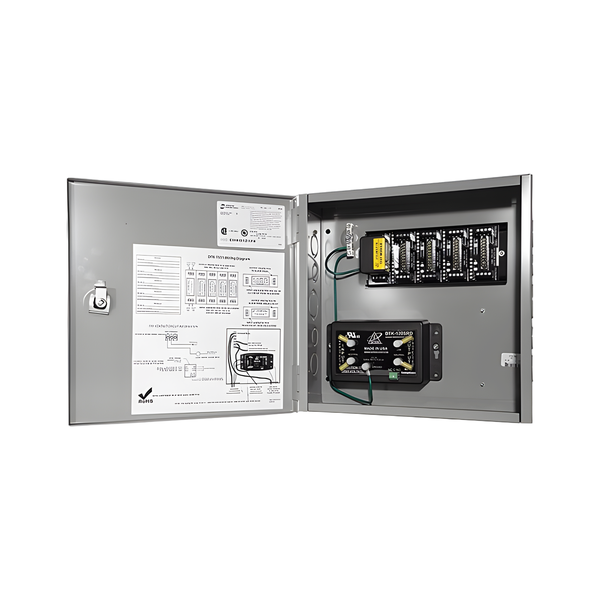

The Ditek DTK-TSS1 is a surge protection cabinet built for both addressable and conventional fire alarm systems, protecting the panel's 120VAC system power along with up to ten pairs of SLC, IDC/PIV, NAC, or dialer circuits once optional field modules are installed. It ships with a DTK-120SRD surge protective device pre-wired to a locking, UL listed metal enclosure, so the AC-side protection is in place from the start and low-voltage circuit modules can be added as the installation grows.
Key Features
- Protects 120VAC system power and up to 10 pairs of low-voltage fire alarm circuits
- Includes a DTK-120SRD surge protective device with Form C dry contacts for remote monitoring
- Prewired mounting base accepts additional field-replaceable modules as circuit count grows
- Supports SLC, IDC/PIV, NAC, and dialer circuit types
- Locking, UL listed metal enclosure
Technical Specifications
- AC Protection: 120VAC system power via DTK-120SRD SPD
- Low-Voltage Capacity: up to 10 pairs (SLC, IDC/PIV, NAC, or dialer), modules sold separately
- Enclosure: Locking metal cabinet
Certifications
- UL Listed enclosure
