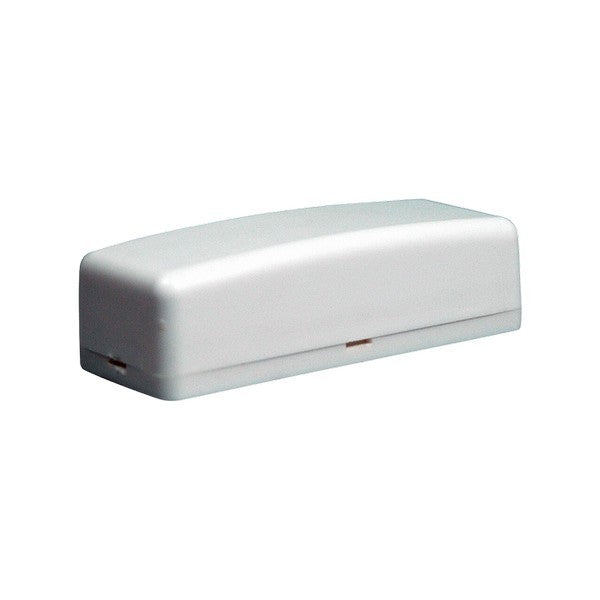

DSC WS4945

The DSC WS4945 is a wireless door and window contact sensor operating at 433 MHz, designed for integration with DSC wireless receivers to provide intrusion detection on entry points throughout a facility. It features a pre-installed lithium battery with a convenient activation pull tab, a built-in reed switch with normally closed contact configuration, and external contact input capability for hardwired door integration where magnet placement is constrained.

Key Features

• Compact wireless door/window contact transmitter for entry point monitoring
• 433 MHz frequency with compatibility across all current DSC wireless receivers
• Pre-installed lithium battery with activation pull tab eliminates pre-install battery insertion requirements
• Dual tamper detection: case tamper and wall tamper switches trigger alarms when casing is opened or removed
• External contact input allows hardwired connections for installations with magnet gap constraints
• Double-sided tape mounting reduces installation time and cost vs. screw mounting

Technical Specifications

• Sensor Type: Wireless door/window contact with built-in reed switch and external contact input
• Operating Frequency: 433 MHz
• Contact Configuration: Normally closed internal reed switch; external input available
• Maximum Magnet Gap: 5/8 inch (1.6 cm)
• Power Source: Pre-installed lithium battery with activation pull tab
• Form Factor: Compact design, 30% smaller than predecessor models
• Mounting: Double-sided tape mounting standard; screw mounting optional
• Compatibility: All current DSC wireless receivers and control panels

Certifications

• FCC certified wireless device
