Dynalock 2011-US28-DSM
Dynalock 2011-US28-DSM
Out of stock; call for lead time

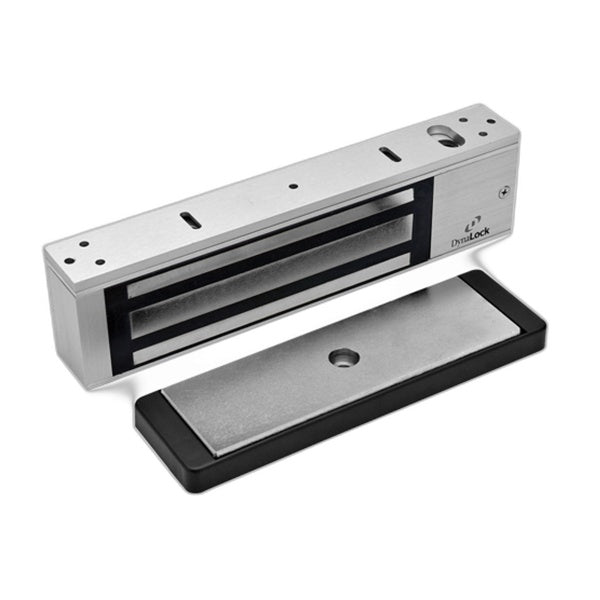

The Dynalock 2011-US28-DSM is a single electromagnetic lock with 1,200 pounds of holding force, finished in satin aluminum with clear anodize (US28) and equipped with a door status monitor (DSM) for remote supervision. Field-selectable 12/24VAC/VDC operation and low power consumption make it suitable for life safety and high-security applications. Lifetime USA manufacturer warranty ensures dependable long-term operation.
Key Features
- Single door electromagnetic lock, 1,200 lb holding force
- US28 satin aluminum finish with clear anodize coating
- DSM door status monitor with SPDT contacts for remote supervision
- Field-selectable 12 or 24VAC/VDC operation
- Low power consumption (420mA @ 12V, 210mA @ 24V)
- Built-in spike suppression protects system components
- No residual magnetism—immediate release when de-energized
- Silent, long-lasting operation with minimal maintenance
Technical Specifications
- Holding Force: 1,200 lbs
- Voltage: Field-selectable 12 or 24VAC/VDC
- Current Draw: 420mA @ 12VDC; 210mA @ 24VDC
- Magnet Dimensions: 11"L x 2.75"H x 1.5"D
- Armature Plate: 7.38"L x 2.38"H x 0.5"D
- Backset: 1.5" (narrow design)
- Finish: US28 satin aluminum with clear anodize
- Weight: 9 lbs (magnet)
- Door Status Monitor: SPDT contacts included
Certifications
- UL Listed for life safety and security applications
- Lifetime manufacturer warranty
- Made in the USA
