Dynalock 2011TJ20DSM
Dynalock 2011TJ20DSM
Out of stock; call for lead time

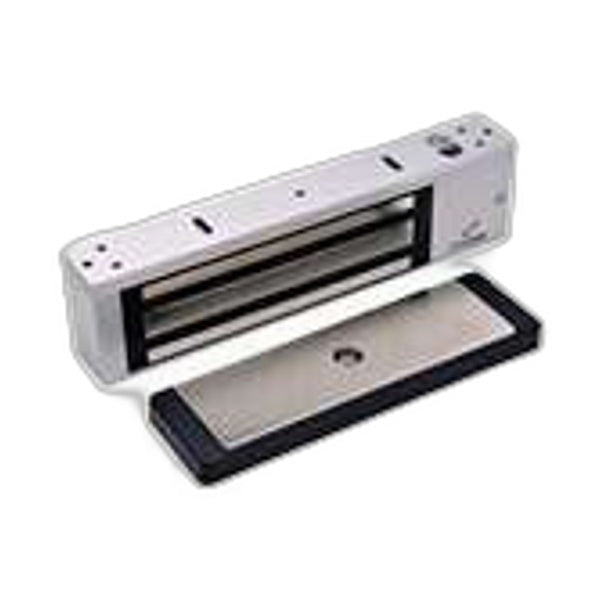

The Dynalock 2011TJ20DSM is a single electromagnetic lock with 1,200 pounds of holding force, equipped with an inswing-door bracket (TJ20) and door status monitor (DSM) for remote monitoring. Field-selectable 12/24VDC operation, low power consumption, and built-in spike suppression make it suitable for life safety and high-security installations. Lifetime USA manufacturer warranty ensures long-term performance.
Key Features
- Single inswing door electromagnetic lock, 1,200 lb holding force
- Includes TJ20 inswing bracket for inswing door installation
- DSM door status monitor with SPDT contacts for remote supervision
- Field-selectable 12 or 24VDC operation
- Low power consumption (420mA @ 12V, 210mA @ 24V)
- Built-in spike suppression protects system components
- No residual magnetism—immediate release when de-energized
- Silent operation with long-lasting performance
Technical Specifications
- Holding Force: 1,200 lbs
- Voltage: Field-selectable 12 or 24VAC/VDC
- Current Draw: 420mA @ 12VDC; 210mA @ 24VDC
- Magnet Dimensions: 11"L x 2.75"H x 1.5"D
- Armature Plate: 7.38"L x 2.38"H x 0.5"D
- Backset: 1.5" (narrow design)
- Finish: Satin aluminum with clear anodize (US28)
- Weight: 9 lbs (magnet only)
- Door Status Switch: SPDT contacts, monitoring enabled
Certifications
- UL Listed for life safety and security applications
- Lifetime manufacturer warranty
- Made in the USA
