Dynalock 2280-DSM
Dynalock 2280-DSM
Out of stock; call for lead time

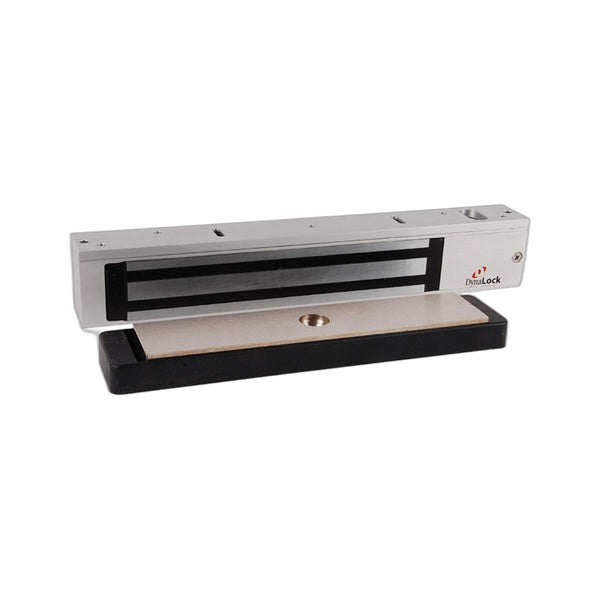

The Dynalock 2280-DSM is a SlimLine electromagnetic lock rated at 1,200 lbs of holding force, built for single outswinging doors in commercial, industrial, and institutional access control applications. Its one-piece housing is milled from a solid aluminum billet for moisture resistance, and the -DSM designation adds a built-in door status switch that reports whether the door is closed or ajar. Foam pads dampen the sound of the armature engaging the lock face, and release is instantaneous when power is cut.
Key Features
- Door status switch (DSM) signals closed vs. ajar door position
- One-piece milled aluminum housing resists moisture intrusion
- Foam pads dampen armature engagement noise
- Instantaneous release delay
Technical Specifications
- Holding force: 1,200 lbs
- Input voltage: 12/24 VDC
- Current draw: 680 mA at 12 VDC, 350 mA at 24 VDC
- Dimensions: 12-3/4" L x 2-1/16" W x 1-1/2" D
- Finish: satin aluminum
Certifications
- UL Listed
