Dynalock 2801
Dynalock 2801
Out of stock; call for lead time

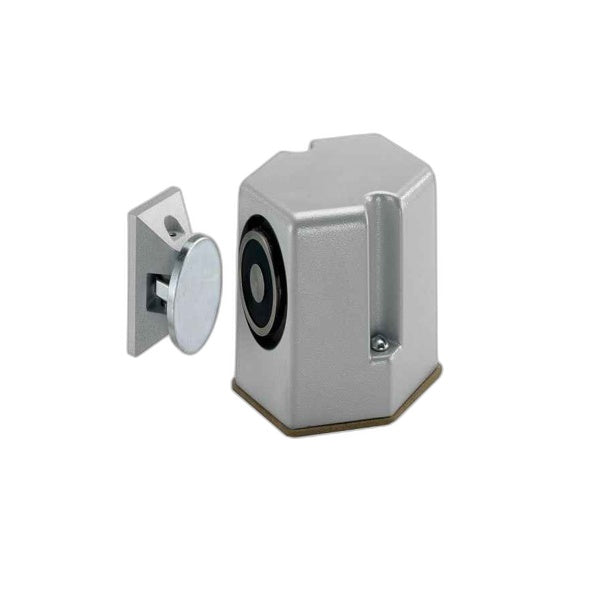

The Dynalock 2801 is a floor-mount electromagnetic door holder with 400-pound holding force rated for fire door and access control applications. Operating at 24VAC/VDC, this single-door model features satin aluminum finish suitable for both interior and exterior commercial installations. The 2801 provides Push-to-Set electronic adjustment for convenient post-installation field tuning without tools, making it ideal for rapid deployment in retrofit fire safety projects and new construction access control systems.
Key Features
- 400 lbs holding force for single doors
- Floor-mount configuration for door base mounting
- 24VAC/VDC operation from access control panel
- Push-to-Set 5-second electronic adjustment
- Satin aluminum finish for commercial aesthetics
Technical Specifications
- Operating voltage: 24VAC or 24VDC
- Holding force: 400 lbs
- Power consumption: 3.6W @ 24VDC
- Material: Aluminum and stainless steel
- Finish: Satin aluminum
- Adjustment: Push-to-Set, 5 seconds required
- Temperature range: 32°F to 122°F (0°C to 50°C)
Certifications
- UL Listed electromagnetic lock for fire doors
- ADA compliant door release function
- NFPA 101 Life Safety Code compatible
