Dynalock 2805
Dynalock 2805
Out of stock; call for lead time

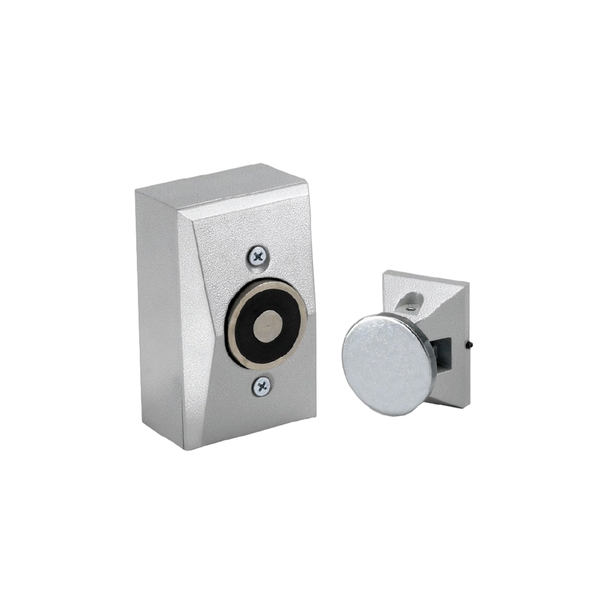

The Dynalock 2805 is an electromagnetic door holder used to hold a fire door open in normal operation and release it automatically on a signal from the fire alarm system, letting the door swing closed under its own closer during an alarm. It's a tri-voltage unit, accepting 12VDC, 24VAC/VDC, or 120VAC input on separate wiring terminals, and installs as a two-piece set: a wall- or floor-mounted magnet box and a matching armature plate mounted on the door itself. The magnet box position is set using Dynalock's dimension tables for door width and pivot distance so the armature contacts the magnet squarely when the door is open.
Key Features
- Holds a fire door open and releases it on a signal from the fire alarm system
- Tri-voltage: accepts 12VDC, 24VAC/VDC, or 120VAC input
- Two-piece design: wall/floor magnet box plus door-mounted armature
- Concealed or through-bolt mounting options for the door armature
- Adjustable mounting bracket accommodates a range of door widths and pivot distances
Technical Specifications
- Voltage/current: 12DC - 60mA/0.72VA; 24AC/DC - 30mA/0.72VA (DC) or 30mA/3.6VA (AC); 120AC - 30mA/3.6VA
- Mounting: Wall or floor-mounted magnet box with door-mounted armature; outlet box should be reinforced to withstand at least 50 lb. of pull
- Series: Part of Dynalock's 2800 Series door holder line
