Eaton Wheelock EL4XBB-R

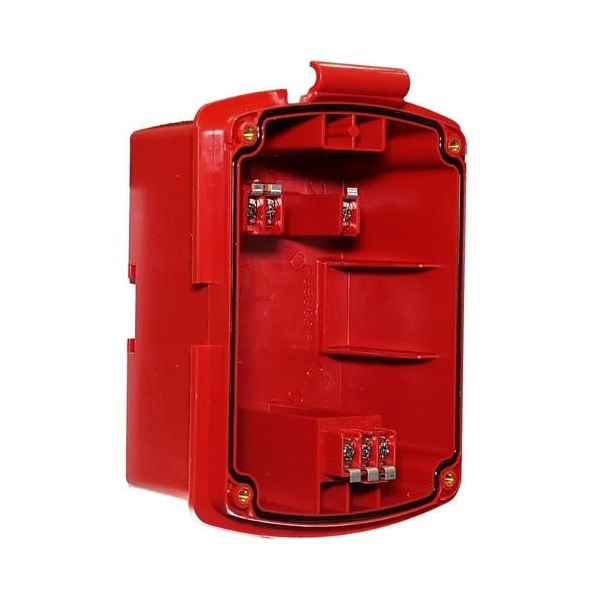

Eaton Wheelock EL4XBB-R NEMA 4X Surface Backbox

Key Features

• NEMA 4X weatherproof surface backbox rated for harsh outdoor environments
• High-visibility red finish designed for fire alarm applications
• Pre-wired compatible design with integrated SHUNT between adjacent "+" terminals for pre-installation testing
• Designed for seamless integration with Eaton Wheelock Eluxa Series notification appliances (horns, strobes, and horn-strobe combinations)
• Provides comprehensive protection against water ingress, dust, salt spray, and corrosion
• Surface-mount installation with external mounting tabs

Technical Specifications

• Model: EL4XBB-R
• Type: NEMA 4X outdoor surface backbox
• Enclosure Rating: NEMA 4X (IP66)
• Color: Red (UV-stabilized engineered plastic)
• Weight: 0.99 lb (450 g)
• Installation: Surface mount with two external mounting tabs and two #10 mounting screws (included)
• Compatible Devices: Eaton Eluxa 3R/4X outdoor notification appliances
• Mounting Hardware: Two #10 screws (provided)
• Testing Feature: Integrated SHUNT between adjacent positive terminals (opens permanently upon device installation)
• Operating Temperature: -40°C to 66°C (-40°F to 150°F)

Certifications

• NEMA 4X (provides protection against water splash, dust, salt spray, and corrosion)
• Meets UL fire alarm equipment standards when paired with compatible Eluxa Series appliances
