Eaton Wheelock EL4XHS-FR

Eaton Wheelock EL4XHS-FR Eluxa NEMA 4X Outdoor Horn Strobe (Red, Clear Lens, FIRE Lettering)

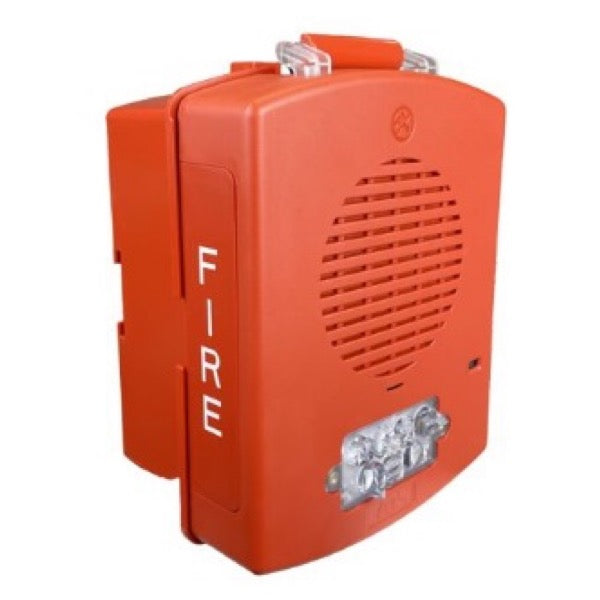

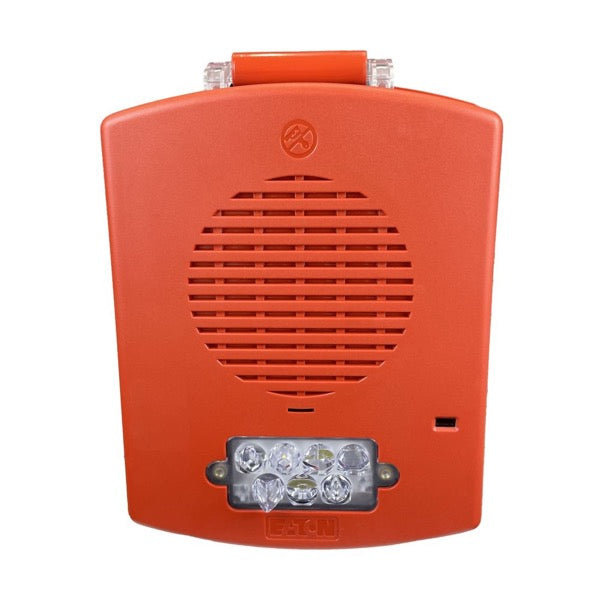

The Eaton Wheelock EL4XHS-FR is a rugged, weatherproof horn strobe designed for reliable emergency notification in harsh indoor and outdoor environments. Part of the Eluxa™ series, it features a red housing with “FIRE” lettering and a clear lens, making it ideal for fire alarm systems in industrial settings, parking garages, and building exteriors.

Key Features

• NEMA 4X & IP66 Rated: Provides superior protection against dust, water, corrosion, and ice formation, ensuring durability in extreme conditions.

• Multi-Candela LED Strobe: Offers six field-selectable candela settings—15, 30, 75, 110, 150, and 185 cd—allowing customization to meet specific application requirements.

• Energy-Efficient LED Technology: Delivers one of the industry’s lowest current draws across the full candela range, reducing power consumption and enabling more devices per circuit.

• Selectable Horn Tones: Features three horn patterns—Continuous, Temporal (T3), and Temporal 3/4 (T3/T4)—with high and low dBA settings for flexible audible signaling.

• Wide Operating Range: Operates within a voltage range of 16 to 33 VDC, compatible with both filtered and unfiltered power supplies.

• Broad Temperature Tolerance: Functions reliably in temperatures ranging from -40°F to 150°F (-40°C to 66°C), suitable for diverse environmental conditions.

• Easy Installation: Includes a pre-wire, pre-test mounting plate and a surface backbox, facilitating quick and efficient installation.

• Synchronization Capability: Compatible with Wheelock’s DSM Sync Modules, PS Power Supplies, and SAFEPATH products, ensuring synchronized strobe flashes across devices.

• Compliance: Meets UL 464, UL 1638, UL 1971, ULC S525, ULC S526 standards, and NFPA 72 2016 requirements for emergency signaling devices.
