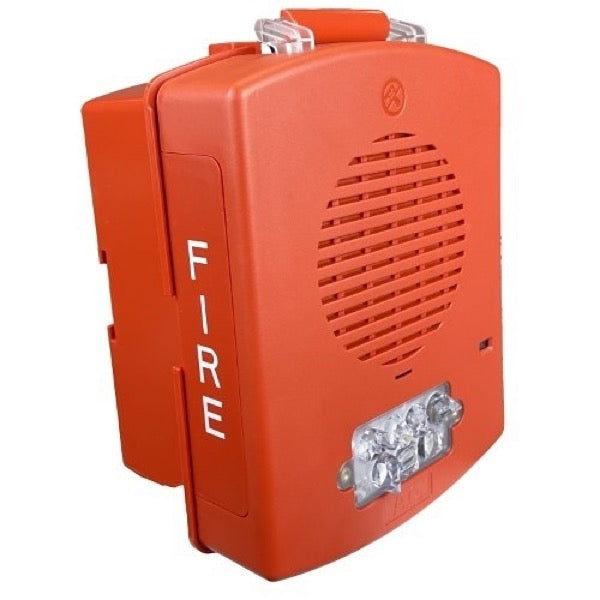

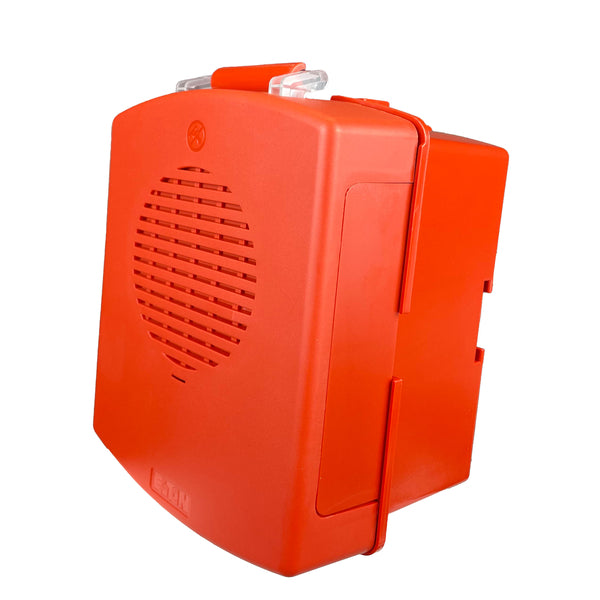

Eaton Wheelock EL4XSPK-NR

Key Features

• NEMA 4X IP66-rated outdoor speaker with efficient design
• High fidelity audio across 400-4000 Hz frequency range
• Multiple power tap settings (1/8, 1/4, 1/2, 1, 2, 4, 8W on 70.7V)
• Weather-sealed construction for harsh environmental conditions
• Red housing for high visibility in outdoor installations

Technical Specifications

• Voltage: 24 VDC or 70.7V constant voltage operation
• Power Taps: 1/8W through 8W selectable
• Frequency Response: 400-4000 Hz
• Operating Temperature: -40°C to 66°C (-40°F to 150°F)
• Humidity: 95% maximum relative humidity
• Mounting: Wall or ceiling mount

Certifications

• UL1638 (Visual Signaling Devices)
• NFPA 72 2016 compliant
