Condition: New

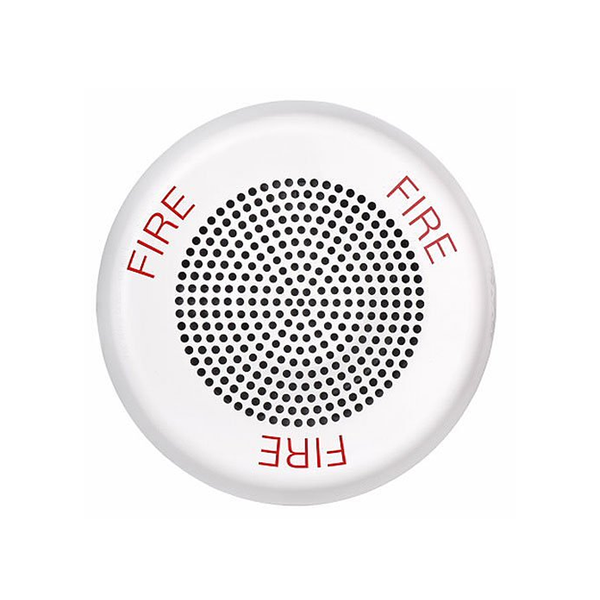

Eaton Wheelock ELFHNWC
Eaton Wheelock ELFHNWC
Horn low Frequency Ceiling White 24V Fire
Regular price
$78.99
Sale price
$78.99
Regular price
Shipping calculated at checkout.
In stock!
Key Features
- Eluxa series ceiling-mounted low-frequency horn for sleeping areas
- 520 Hz low-frequency tone optimized for sleeping room code compliance
- Supports both T3 (fire) and T4 (CO) temporal patterns from single device
- Advanced LED technology with low current draw
- White finish for discrete installation
- Meets NFPA 720 and NFPA 72 sleeping room requirements
Technical Specifications
- Voltage: 24V DC
- Frequency: 520 Hz (low frequency)
- Sound Patterns: T3 (fire detection) and T4 (CO detection)
- Mounting: Ceiling
- Housing: White, UV stabilized plastic
- Audible Current: 0.098 mA
- Dimensions: 3.52" H x 6.3" Diameter
- Weight: 1.2 lbs
- Lamp Type: LED
- Lettering: FIRE
Certifications
- NFPA 720 - Sleeping room code compliant
- NFPA 72 - Sleeping room code compliant
- Single pair of wires for retrofit compatibility
- Ideal for hotels, motels, dormitories, apartment buildings, and assisted living facilities
