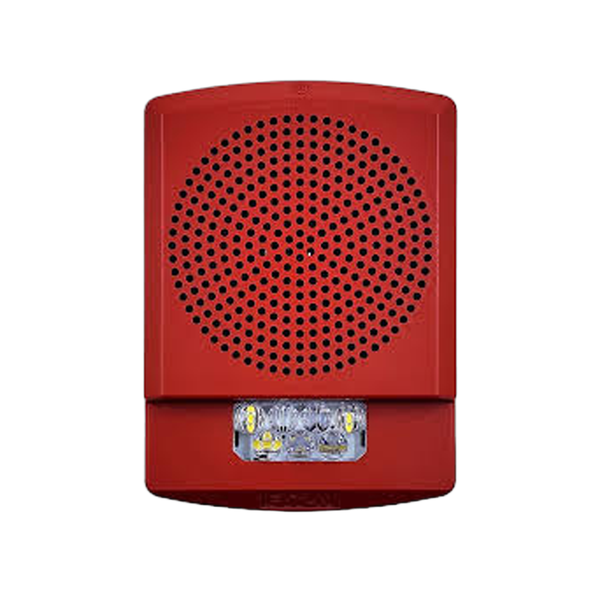

Eaton Wheelock ELMTSR-A

The Eaton (Wheelock) ELMTSR-A Eluxa is a multitone LED horn strobe built for indoor fire, emergency, and agent-release notification. This red, wall-mounted appliance carries "AGENT" lettering behind a clear Lexan lens and uses LED strobe technology to deliver eight selectable alerting tones from a single, low-current device.

Key Features

• Eight selectable tones: Code-3 Tone, Code-3 Horn, Bell, March Time Horn, Slow Whoop, Siren, TO-315, Horn
• Hinged mounting plate with pre-wire/pre-test capability for fast installation
• Tool-free finger-slide configuration switches
• "AGENT" lettering for agent-release/suppression system applications

Technical Specifications

• Candela range: 4, 5, 8, 10, 12, 15, 20, 25, 30, 35, 40, 45, 50, 65, 75, 110, 150, 177 cd
• Sound output: 92 dBA @ 10 ft (reverberant), 97 dBA @ 10 ft (anechoic)
• Operating voltage: 24 VDC
• Operating range: 32°F to 122°F (0°C to 50°C), up to 93% humidity

Certifications

• UL, ULC, FM, FCC, and RoHS compliant
