Eaton Wheelock ELMTW

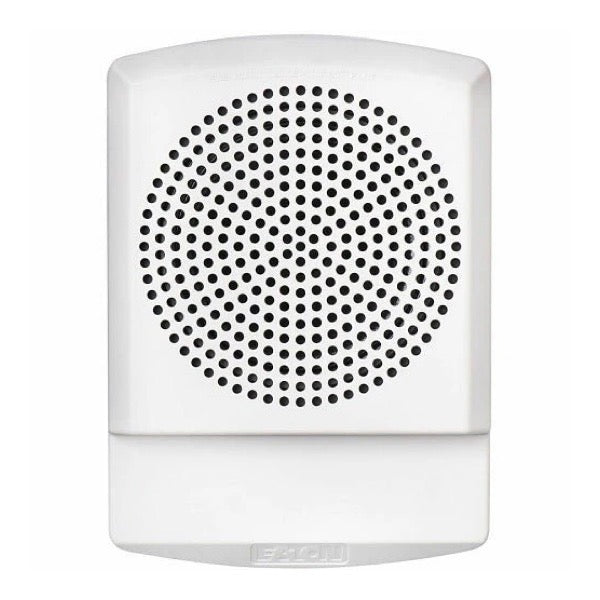

Eaton Wheelock ELMTW Eluxa Multitone Horn

The Eaton Wheelock ELMTW is a wall-mounted multitone horn from the Eluxa series, engineered to deliver audible alerts in emergency situations. This device offers a selection of eight distinct alerting sounds, making it versatile for various signaling requirements.

Key Features:

• Multitone Functionality: Provides eight field-selectable alerting sounds, including Horn, Bell, March Time Horn, Code-3 Tone, Code-3 Horn, Slow Whoop, Siren, and Hi/Lo Tone, accommodating diverse signaling needs.

• Field-Selectable Sound Output Levels: Offers two adjustable sound output levels—Standard dBA and High dBA—allowing customization based on specific application requirements.

• Energy Efficiency: Incorporates advanced technology, resulting in lower current draw and reduced power consumption compared to traditional notification appliances.

• Low-Profile Design: Features a sleek, modern aesthetic with a compact footprint, measuring 6.35 inches in height, 4.56 inches in width, and 1.54 inches in depth, ensuring a discreet installation.

• Ease of Installation: Equipped with a mounting plate that includes a capture hinge, facilitating pre-wiring and pre-testing. The device also supports IN/OUT screw terminals accommodating #12 to #18 AWG wires, simplifying the installation process.
