Eaton Wheelock LFHSKR3

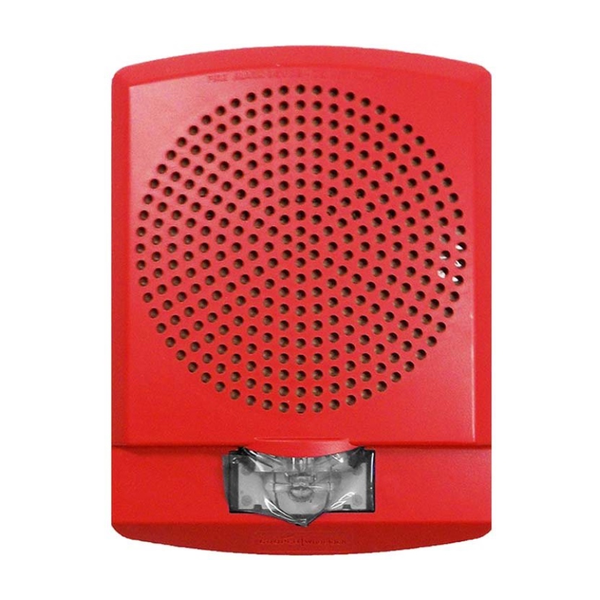

Eaton Wheelock LFHSKR3 - Exceder LED3 Low Frequency Horn Strobe

Key Features

• 520 Hz low frequency sounder meeting NFPA sleeping room requirements
• 110 candela strobe light with compact wall-mount design (less than 2" profile)
• FIRE lettering for clear emergency identification
• High-efficiency LEDs providing industry's lowest current draw
• Synchronizable with Wheelock DSM or power supplies

Technical Specifications

• Mounting: Wall-mounted
• Color: Red finish
• Voltage: 24V DC operation
• Candela: 110 cd (field selectable, options up to 177 cd available)
• Frequency: 520 Hz low frequency horn tone
• Operating Modes: T3 (fire), T4 (CO), Continuous, T3/T4 Sync
• Wall Profile: Less than 2" from wall

Certifications

• UL Standard 1971
• UL Standard 464
• ULC-S525
• ULC-S526
• NFPA 72 2016 compliant (20ms light pulse)
